Jaxon Steel is a prominent industrial fastener manufacturer and supplier of high-quality industrial fasteners in Manila, Philippines. With expertise in precision-engineered parts, we supply superior-grade Alloy Steel Gr B7 Washers that are made for strength, durability, and reliability. Our washers are perfectly suited for high-pressure and high-temperature applications and offer superior performance in heavy-duty industries like construction, automotive, and oil & gas. With a dedication to quality, we follow stringent industry standards, offering corrosion-resistant and durable solutions. Rely on Jaxon Steel for superior fastening products that can solve your most challenging engineering problems.
Alloy Steel Gr B7 washers are of chromium-molybdenum steel, i.e., contain iron (Fe) with the addition of carbon (C), manganese (Mn), phosphorus (P), sulfur (S), silicon (Si), chromium (Cr), and molybdenum (Mo). The mechanical properties of such washers are very good and possess high tensile strength of 125 ksi min, yield strength of 105 ksi min, and a hardness of Rockwell C35 max. They provide better wear resistance, hardness, and strength, which qualify them for heavy-duty applications under high pressure and temperature in building, automotive, and heavy machine industries. Their corrosion resistance may be improved using coatings such as zinc or galvanization.
| Specifications | : | ASTM A 194 ASME SA 194 |
| Standard | : | IS, ASTM, BS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |

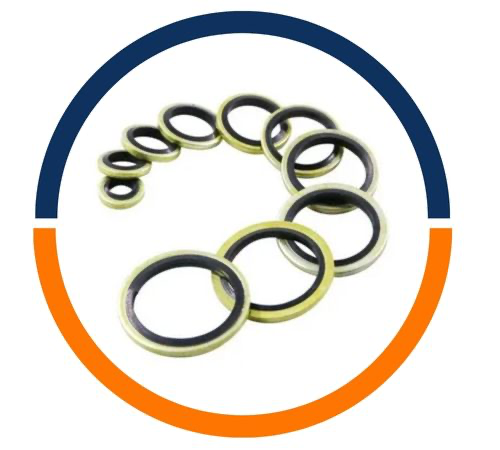

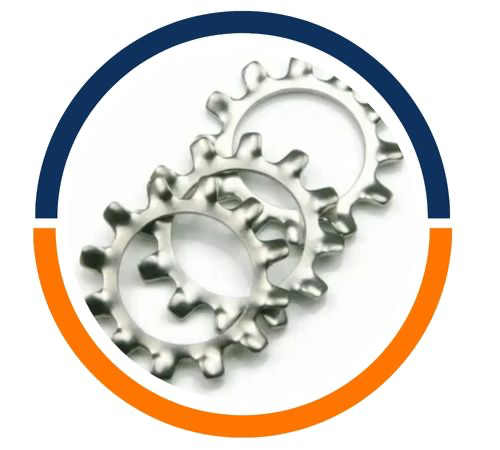

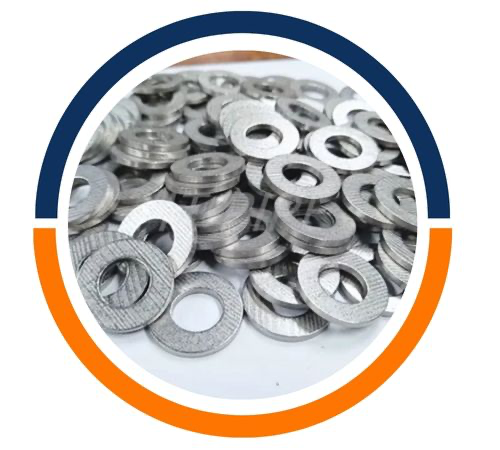

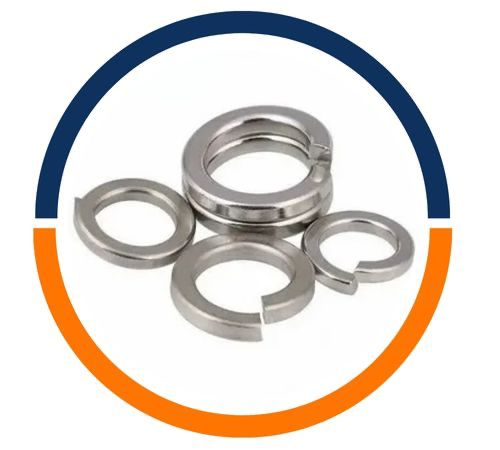

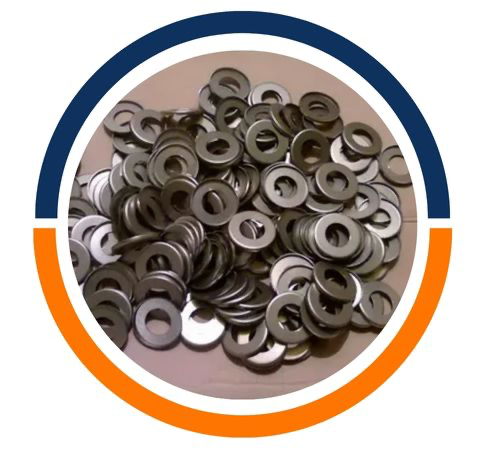

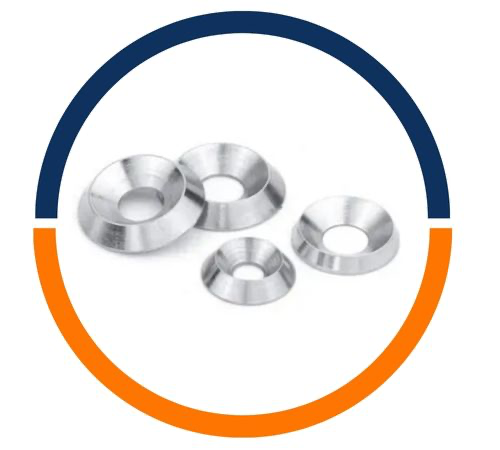

| Type | : | Flat Washer, Lock Washer, Sealing Washer, Split Washer, Slot Washer, Machine Washer, Star Washer SPRINGS – Wire Spring & Flat Spring. |
| Alloy Steel GR 7 | C | Mn | P | S | Si | Mo | Cr |
| 0.37-0.49% | 0.65-1.10% | 0.04% | 0.04% | 0.15-0.035% | 0.15-0.25% | 0.75-1.20% |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
|---|---|---|---|---|---|
| B7 | Up to 2-1/2 | 125 | 105 | 16 | 50 |
| 2-5/8 – 4 | 115 | 95 | 16 | 50 | |
| 4-1/8 – 7 | 100 | 75 | 18 | 50 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Gr B7 washers find extensive applications in high-temperature and high-stress conditions because of their superior strength and resistance. Some typical uses are in petrochemical facilities, power generation, building construction, and heavy equipment. They play a critical role in flange bolted connections, pipelines, pressure vessels, and structural components to secure fastening and load transfer. These washers are also applied in the automotive, aerospace, and marine sectors, where resistance to wear, corrosion, and harsh conditions is paramount. Their enhanced mechanical properties make them best suited for use in applications where high tensile strength, reliability, and resistance to deformation under heavy loads and thermal expansion are necessary.
