Liam Steel, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Carbon Steel JIS G3461 Pipes. These pipes are crafted for exceptional performance and reliability in both industrial and structural applications. Adhering to the Japanese Industrial Standard (JIS G3461), they boast impressive strength, durability, and resistance to corrosion, making them perfect for medium- and low-pressure systems. Commonly found in water, gas, and oil pipelines, as well as in structural frameworks, Liam Steel’s JIS G3461 pipes guarantee consistent quality and a long lifespan. With cutting-edge production methods and rigorous quality checks, these pipes are a great choice for demanding industrial, commercial, and residential projects.
Carbon Steel JIS G3461 Pipes are made up of carbon (0.05–0.30%), manganese (0.30–0.90%), phosphorus (≤0.05%), sulfur (≤0.05%), and silicon (0.10–0.35%). This specific alloy composition strikes a perfect balance between tensile strength, ductility, and toughness. Generally, these pipes exhibit a tensile strength ranging from 410 to 550 MPa and a yield strength between 250 and 350 MPa. They are known for their excellent weldability, formability, and resistance to wear and deformation under medium-pressure conditions. These mechanical properties make them ideal for fluid transportation, structural applications, and various industrial uses, ensuring durability and reliability over long service periods.
| Standards | JIS G3461 Carbon Steel Pipe |
|---|---|
| JIS G3461 Carbon Steel Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| JIS G3461 Carbon Steel Welded Pipe Size | 5.0 mm – 1219.2 mm |
| JIS G3461 Carbon Steel EFW Pipe size | 5.0 mm – 1219.2 mm |
| JIS G3461 Carbon Steel Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3461 Carbon Steel Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| JIS G3461 Carbon Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| JIS G3461 Carbon Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| JIS G3456 Carbon Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

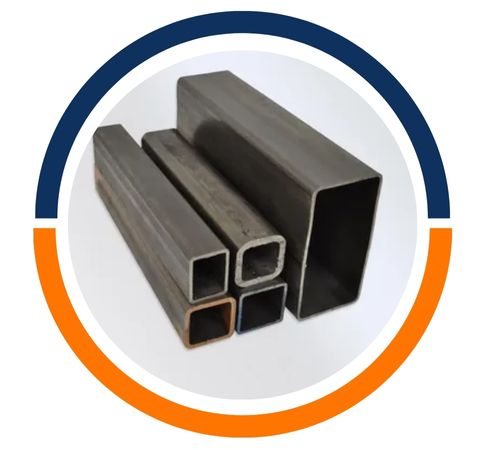

| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Marking | All JIS G3461 Carbon Steel Pipe are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Standard | Grade | Chemical Composition Limits (%) | ||||
| C | Si | Mn | P | S | ||
| JIS G3461 | JIS G3461 STB340 | ≤ 0.18 | ≤ 0.3 | 0.30-0.60 | ≤ 0.035 | ≤ 0.035 |
| JIS G3461 STB410 | ≤ 0.32 | ≤ 0.35 | 0.30-0.80 | ≤ 0.035 | ≤ 0.035 | |
| JIS G3461 STB510 | ≤ 0.25 | ≤ 0.35 | 1.00-1.50 | ≤ 0.035 | ≤ 0.035 | |
| Grade | Tensile Property (N/mm2) | Yield Point or Yield Strength (N/mm2) | Elongation (%) | ||
| OD ≥20 mm | 10 mm ≤OD ＜20 mm | OD ＜10 mm | |||
| NO. 11 Sample; NO. 12 Sample | NO. 11 Sample | NO. 11 Sample | |||
| Longitudinal | Transverse | Transverse | |||
| JIS G3461 STB340 | ≥ 340 | ≥ 175 | ≥ 35 | ≥ 30 | ≥ 27 |
| JIS G3461 STB410 | ≥ 410 | ≥ 255 | ≥ 25 | ≥ 20 | ≥ 17 |
| JIS G3461 STB510 | ≥ 510 | ≥ 295 | ≥ 25 | ≥ 20 | ≥ 17 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel JIS G3461 Pipe in Manila, Philippines. Offering premium steel materials, the company provides an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional service, we ensure that only the finest raw materials are used to guarantee superior performance in all industrial applications with stringent requirements. Contact us today to meet your Carbon Steel JIS G3461 Pipe needs.
| Component length (mm) | OD 30-100 mm | OD 100-254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
Carbon Steel JIS G3461 Pipes find extensive use in industries that demand robust and dependable piping systems. They are perfect for transporting water, oil, gas, and other fluids across residential, commercial, and industrial pipelines. Additionally, these pipes serve structural purposes, such as scaffolding, frameworks, and support systems for buildings and infrastructure. In industrial environments, JIS G3461 pipes are utilized in process plants, refineries, and power generation facilities. Their remarkable strength, toughness, and outstanding weldability make them an excellent choice for a wide range of applications, ensuring they stand the test of time.
