Liam Steel is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on producing top-notch Carbon Steel Nuts. The company stands out for its cutting-edge production techniques, precise engineering, and unwavering commitment to meeting international quality standards. Liam Steel provides robust and high-strength fastening solutions that are built to perform reliably across a variety of industrial applications. Catering to industries like construction, oil and gas, power generation, manufacturing, and automotive, the company has built a solid reputation for excellence in its products, timely deliveries, and ensuring customer satisfaction in both local and global markets.
Carbon Steel Nuts are mainly made up of carbon and iron, with carefully controlled amounts of manganese, phosphorus, and sulfur to strike the right balance of strength, hardness, and machinability. Depending on their grade, these nuts boast impressive tensile and yield strength, along with good resistance to wear and impact. They can also be heat-treated to boost hardness and surface finish, and may be zinc-plated or galvanized to enhance corrosion resistance, making them ideal for outdoor or industrial settings.
Specification :Â ASTM F568 / ASME SF568
Dimension :Â DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Size Range :Â M3 – M56 | 3/6″ to 2″ | Custom Sizes
Length :Â 3 mm to 200 mm

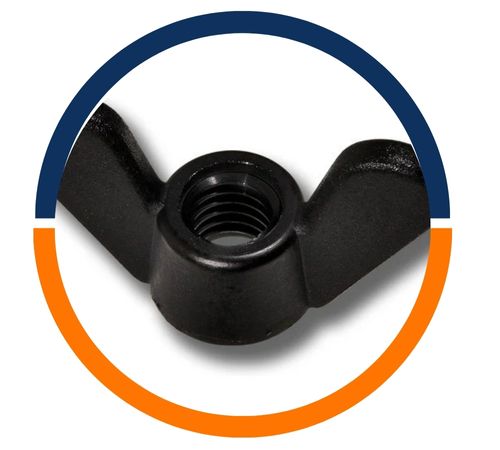

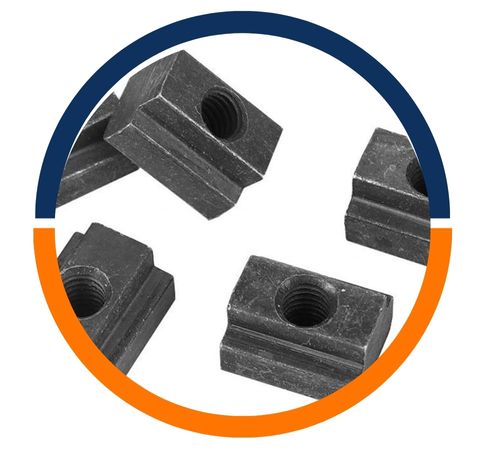

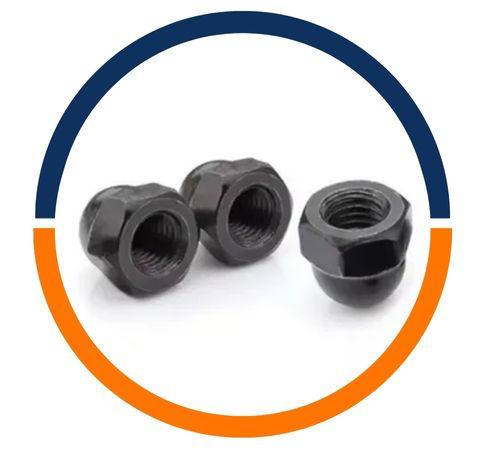

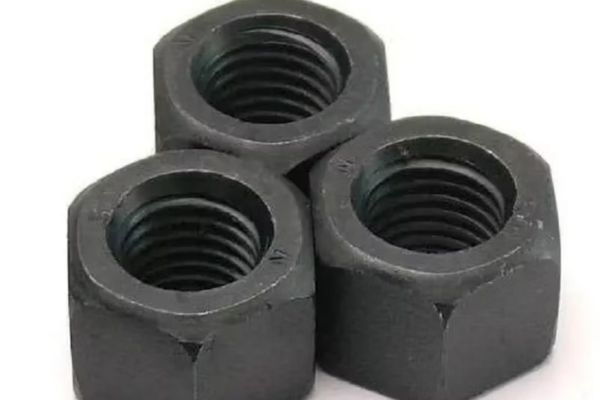

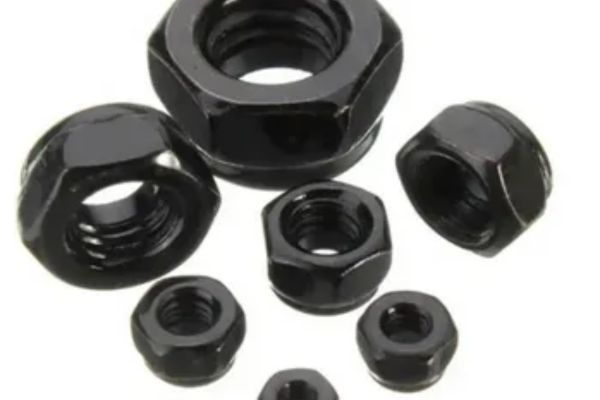

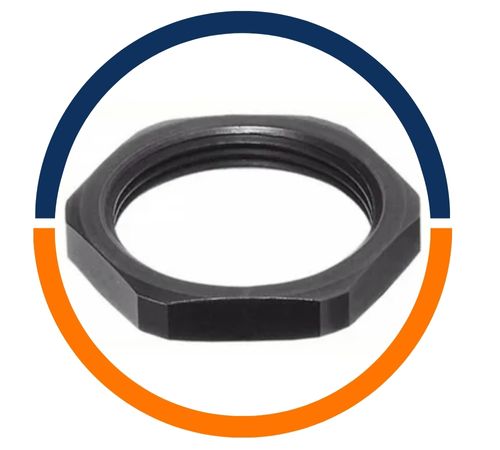

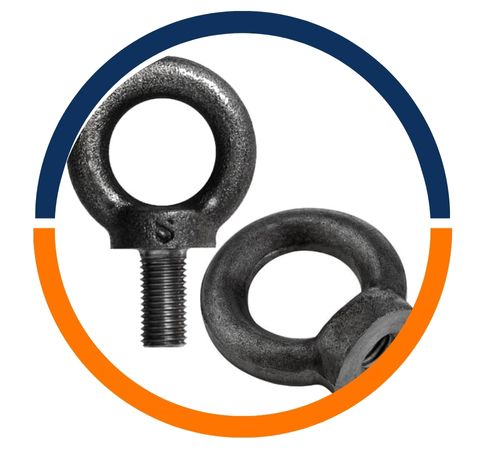

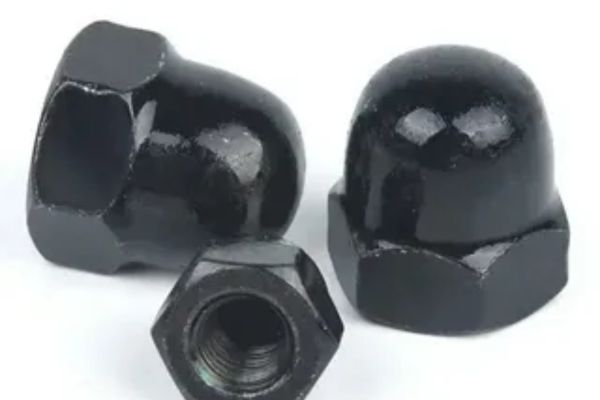

Type : Hex Head nuts, Square nuts, Lock nuts, Eye nuts, wing nuts, T nuts, Panel Nuts, Coupling Nuts, Dome nuts, Acorn Nuts.
| Grade | C | P | S | B |
| Carbon Steel 10.9 | 0.20-0.55 | 0.025 | 0.025 | 0.003 |
| Carbon Steel 12.9 | 0.28-0.5 | 0.025 | 0.025 | 0.003 |
| Element | Nominal thread diameter size range [mm] | Proof strength [MPa] | Yield strength (min) [MPa] | Tensile strength (min) [MPa] | Hardness [Rockwell] |
| Carbon Steel 10.9 | 5–100 | 830 | 940 | 1040 | C32–39 |
| Carbon Steel 12.9 | 1.6–100 | 970 | 1100 | 1220 | C39–44 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trustworthy manufacturer and supplier of quality Carbon Steel Nut in Manila, Philippines. We specialize in top-grade steel products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel, with the main focus being on Carbon Steel Sheets and Plates. Our vast inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars. Committed to fast delivery and excellent customer service, we use only the finest raw materials to deliver excellent strength, durability, and performance for high-demand industrial uses. Contact us today for all your Carbon Steel Nut needs!
| Â Hex Nut NB | Across Corners | MAX Thickness | MIN Thickness | MAX Across Flats | MIN Across Flats |
|---|---|---|---|---|---|
| M 8 | 14.38 | 6.8 | 6.44 | 13 | 12.73 |
| M 10 | 17.77 | 8.4 | 8.04 | 16 | 15.73 |
| M 12 | 20.03 | 10.8 | 10.37 | 18 | 17.73 |
| M 14 | 23.35 | 12.8 | 12.1 | 21 | 20.67 |
| M 16 | 26.75 | 14.8 | 14.1 | 24 | 23.67 |
| M 18 | 29.56 | 15.8 | 15.1 | 27 | 26.16 |
| M 20 | 32.95 | 18 | 16.9 | 30 | 29.16 |
| M 22 | 37.29 | 19.4 | 18.1 | 34 | 33 |
| M 24 | 39.55 | 21.5 | 20.2 | 36 | 35 |
| M 27 | 45.2 | 23.8 | 22.5 | 41 | 40 |
| M 30 | 50.85 | 26.6 | 24.3 | 46 | 45 |
| M 33 | 55.37 | 28.7 | 27.4 | 50 | 49 |
| M 36 | 60.79 | 31 | 29.4 | 55 | 53.8 |
| M 39 | 66.44 | 33.4 | 31.8 | 60 | 58.8 |
| M 42 | 71.3 | 34 | 32.4 | 65 | 63.1 |
| M 45 | 76.95 | 36 | 34.4 | 70 | 68.1 |
| M 48 | 82.6 | 38 | 39.4 | 75 | 73.1 |
| M 52 | 88.25 | 42 | 40.4 | 80 | 78.1 |
| M 56 | 93.56 | 45 | 43.4 | 85 | 82.8 |
| M 60 | 99.21 | 48 | 46.4 | 90 | 87.8 |
| M 64 | 104.86 | 51 | 49.1 | 95 | 92.8 |
| M 68 | 110.51 | 54 | 52.1 | 100 | 97.8 |
| M 72 x 6 | 116.16 | 58 | 56.1 | 105 | 102.8 |
| M 76 x 6 | 121.81 | 61 | 59.1 | 110 | 107.8 |
| M 80 x 6 | 127.46 | 64 | 62.1 | 115 | 112.8 |
| Nominal or Basic Major Diameter of Nut Thread | Nuts Width Across Flats (F) | Width Across Corners (G) | Thickness of Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Basic | Max | Min |  Max |  Min | Basic |  Max | Min | ||
| 1/4 | 0.2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 0.226 | 0.212 |
| 5/16 | 0.3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | 0.273 | 0.258 |
| 3/8 | 0.3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | 0.337 | 0.320 |
| 7/16 | 0.4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | 0.385 | 0.365 |
| 1/2 | 0.5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | 0.448 | 0.427 |
| 9/16 | 0.5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | 0.496 | 0.473 |
| 5/8 | 0.6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | 0.559 | 0.535 |
| 3/4 | 0.7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | 0.665 | 0.617 |
| 7/8 | 0.8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | 0.776 | 0.724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | 0.887 | 0.831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | 0.999 | 0.939 |
| 1-1/4 | 1.2500 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 1-1/16 | 1.094 | 1.030 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.5000 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.317 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.456 | 2-3/8 | 2.431 | 2.319 |
| 3 | 3.000 | 4-1/2 | 4.500 | 4.350 | 5.196 | 4.959 | 2-19/32 | 2.654 | 2.534 |
These Carbon Steel Nuts find extensive use in construction, machinery, automotive, and industrial equipment assembly. They are crafted to securely fasten bolts and threaded components, ensuring strong and stable connections even under varying loads and conditions. Common applications include structural joints, pipelines, pressure vessels, and heavy machinery. Their affordability, durability, and versatility make them perfect for both general-purpose and high-stress environments, guaranteeing long-lasting and reliable fastening performance across a wide range of industrial and mechanical systems.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
