Liam Steel, located in Manila, Philippines, has built a solid reputation as a manufacturer and supplier of Low Temperature Carbon Steel LF787 Flanges. With a strong focus on precision engineering and strict adherence to international quality standards, Liam Steel crafts LF787 flanges that are tailored for outstanding performance in extremely low-temperature settings. These flanges are known for their remarkable toughness, strength, and resistance to brittle fracture, ensuring safety and reliability in critical operations. Catering to industries like oil and gas, petrochemicals, and power generation, Liam Steel is dedicated to providing reliable, high-performance flange solutions for challenging low-temperature applications.
LF787 flanges are made from low-temperature carbon steel, which includes carbon (up to 0.20%), manganese (between 0.90% and 1.60%), phosphorus (maximum 0.035%), sulfur (maximum 0.040%), silicon (between 0.15% and 0.30%), and alloying elements such as nickel (up to 1%) to enhance low-temperature performance. These flanges boast a minimum yield strength of 275 MPa and a tensile strength that ranges from 485 to 655 MPa. With impressive impact toughness even at temperatures as low as -46°C, LF787 flanges deliver exceptional strength and fracture resistance, making them perfect for critical low-temperature piping systems.
| Element | Composition |
|---|---|
| Carbon, max | 0.07 |
| Manganese | 0.40–0.70 |
| Phosphorus, max | 0.025 |
| Sulfur, max | 0.025 |
| Silicon [Note A] | 0.40 max |
| Nickel | 0.70–1.00 |
| Chromium | 0.60–0.90 |
| Molybdenum | 0.15–0.25 |
| Copper | 1.00–1.30 |
| Columbium | 0.02 min |
| Vanadium | 0.03 max |
| Tensile Class | Tensile Strength, ksi [MPa] | Yield Strength, min, ksi [MPa] [Note B, C] | Elongation | Reduction of Area, min, % | |
|---|---|---|---|---|---|
| Round Specimen in 4D, min, % | Strip Specimen in 2 Inch [50mm], min, % | ||||
| Class 2 | 65–85 [450–585] | 55 [380] | 20 | 28 | 45 |
| Class 3 | 75–95 [515–655] | 65 [450] | 20 | 28 | 45 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality Low Temperature Carbon Steel LF787 Flanges in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.

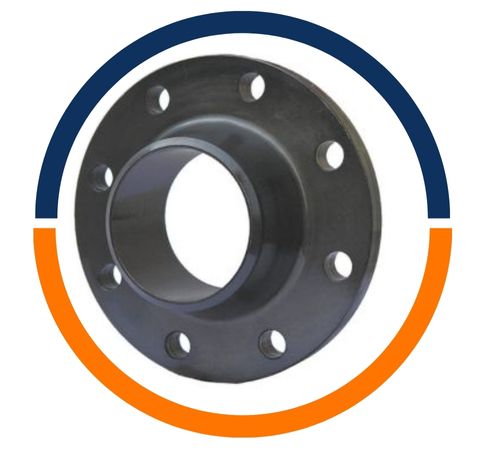

| ASME/ANSI B 16.5 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, LTCS A350 LF787 Lap Joint Flange, Threaded Flange, LTCS A350 LF787 Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Slip on Flange, LTCS A350 LF787 Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Hubbed Slip on Flange, LTCS A350 LF787 Hubbed Threaded Flange, Lapped Pipe End Flange, LTCS A350 LF787 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Hubbed Slip-On Hubbed Threaded, Plate Flange, LTCS A350 LF787 Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | LTCS A350 LF787 Welding Neck Flange, Socket Welding Flange, LTCS A350 LF787 Slip-On Flange, LTCS A350 LF787 Blind Flange, LTCS A350 LF787 Screwed Boss Flange, LTCS A350 LF787 Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | LTCS A350 LF787 Welding Neck Flange, LTCS A350 LF787 Plate Slip-On Flange, LTCS A350 LF787 Screwed Boss Flange, Slip-On Boss Flange, LTCS A350 LF787 Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| NPS | O.D. of Flange | Flanges Thickness | Diameter of RF | Diameter of Hub at Base | Lengtd Tdru Hub | Bore or Diameter | Dia. of Hub at Bevel | Radius of Fillet | Deptd of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding (WN) Neck | Slip-On (SORF) Threaded (NPT) Socket (SWRF) | Lap Joint (Loose) | Slip-on (SORF) Socket (SWRF) | Lap Joint (Loose) | ||||||||
| O | Q | R | X | Y | Y | Y | W | B | H | r | Z | |
| 1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 | 1-7/8 | 5/8 | 5/8 | .88 | .90 | .84 | 1/8 | 3/8 |
| 3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 | 2-1/16 | 5/8 | 5/8 | 1.09 | 1.11 | 1.05 | 1/8 | 7/16 |
| 1 | 4-1/4 | 9/16 | 2 | 1-15/16 | 2-3/16 | 11/16 | 11/16 | 1.36 | 1.38 | 1.32 | 1/8 | 1/2 |
| 1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 | 2-1/4 | 13/16 | 13/16 | 1.70 | 1.72 | 1.66 | 3/16 | 9/16 |
| 1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 | 2-7/16 | 7/8 | 7/8 | 1.95 | 1.97 | 1.90 | 1/4 | 5/8 |
| 2 | 6 | 3/4 | 3-5/8 | 3-1/16 | 2-1/2 | 1 | 1 | 2.44 | 2.46 | 2.38 | 5/16 | 11/16 |
| 2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 | 2-3/4 | 1-1/8 | 1-1/8 | 2.94 | 2.97 | 2.88 | 5/16 | 3/4 |
| 3 | 7-1/2 | 15/16 | 5 | 4-1/4 | 2-3/4 | 1-3/16 | 1-3/16 | 3.57 | 3.60 | 3.50 | 3/8 | 13/16 |
| 3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 | 2-13/16 | 1-1/4 | 1-1/4 | 4.07 | 4.10 | 4.00 | 3/8 | 7/8 |
| 4 | 9 | 15/16 | 6-3/16 | 5-5/16 | 3 | 1-5/16 | 1-5/16 | 4.57 | 4.60 | 4.50 | 7/16 | 15/16 |
| 5 | 10 | 15/16 | 7.5/16 | 6-7/16 | 3-1/2 | 1-7/16 | 1-7/16 | 5.66 | 5.69 | 5.56 | 7/16 | 15/16 |
| 6 | 11 | 1 | 8-1/2 | 7-9/16 | 3-1/2 | 1-9/16 | 1-9/16 | 6.72 | 6.75 | 6.63 | 1/2 | 1-1/16 |
| 8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 | 4 | 1-3/4 | 1-3/4 | 8.72 | 8.75 | 8.63 | 1/2 | 1-1/4 |
| 10 | 16 | 1-3/16 | 12-3/4 | 12 | 4 | 1-15/16 | 1-15/16 | 10.88 | 10.92 | 10.75 | 1/2 | 1-5/16 |
| 12 | 19 | 1-1/4 | 15 | 14-3/8 | 4-1/2 | 2-3/16 | 2-3/16 | 12.88 | 12.92 | 12.75 | 1/2 | 1-9/16 |
| 14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 | 5 | 2-1/4 | 3-1/8 | 14.14 | 14.18 | 14.00 | 1/2 | 1-5/8 |
| 16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 | 5 | 2-1/2 | 3-7/16 | 16.16 | 16.19 | 16.00 | 1/2 | 1-3/4 |
| 18 | 25 | 1-9/16 | 21 | 19-7/8 | 5-1/2 | 2-11/16 | 3-13/16 | 18.18 | 18.lf2 | 18.00 | 1/2 | 1-15/16 |
| lf2 | 27-1/2 | 1-11/16 | 23 | 22 | 5-11/16 | 2-7/8 | 4-1/16 | lf2.lf2 | lf2.25 | lf2.00 | 1/2 | 2-1/8 |
| 24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 | 6 | 3-1/4 | 4-3/8 | 24.25 | 24.25 | 24.00 | 1/2 | 2-1/2 |
| Nominal Pipe Sizes (NPS) | Slip On (SORF) | Threaded (NPT) | Socket Weld (SWRF) | Lap Joint (Loose) | Blind (BLRF) | Weld Neck (WRNR) |
|---|---|---|---|---|---|---|
| ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 |
| 5 | 15 | 15 | 15 | 15 | lf2 | 21 |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 |
| 18 | 130 | 130 | 130 | 160 | 2lf2 | 165 |
| lf2 | 165 | 165 | 165 | 195 | 285 | 197 |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 |
| 24 | 2lf2 | 2lf2 | 2lf2 | 275 | 430 | 268 |
Low Temperature Carbon Steel LF787 Flanges are a go-to choice for applications that require dependable performance in freezing conditions. You’ll often find them in LNG plants, cryogenic storage systems, and offshore oil platforms, where they play a crucial role in piping systems that transport cold fluids and gases. Thanks to their impressive strength, low-temperature toughness, and excellent weldability, these flanges are perfect for pressure vessels, refineries, and gas processing units. LF787 flanges are also widely used in chemical and petrochemical plants, where safety and resistance to brittle fracture are vital in extreme operating conditions. Their robust design ensures they provide long-lasting, leak-free service even in the toughest environments.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
