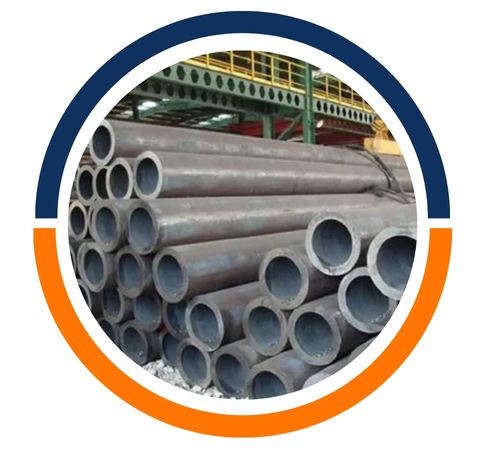

Liam Steel stands out as a top manufacturer and supplier of **AISI 4130 Pipes** right here in **Manila, Philippines**. We specialize in providing high-strength alloy steel piping solutions tailored for industries that demand exceptional performance in tough conditions. Our AISI 4130 Pipes are designed to deliver outstanding toughness, wear resistance, and durability, making them perfect for high-pressure, high-stress, and corrosive environments. Thanks to our advanced steelmaking techniques, heat treatment, and rigorous quality control, these pipes guarantee consistent mechanical performance and a long service life. We proudly supply AISI 4130 Pipes to sectors like automotive, aerospace, oil and gas, and heavy machinery, ensuring our precision-engineered steel products meet international standards throughout the Philippines.
Our AISI 4130 Pipes are crafted from **chromium-molybdenum alloy steel**, which includes about **0.30–0.33% carbon, 0.8–1.1% chromium, 0.15–0.25% molybdenum, and 0.40–0.60% manganese**. They boast **tensile strength up to 850–950 MPa** and **yield strength around 560–600 MPa**, providing excellent toughness, fatigue resistance, and dimensional stability. These pipes are also known for their good weldability, machinability, and hardness, making them ideal for heavy-duty applications where structural integrity and long-term performance are crucial.
| AISI 4130 Pipes Specifications | ASTM A519 / ASME SA519 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM A519 Alloy Steel Seamless Pipe Size | 1 / 2″ NB – 16″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Alloy Tubes available Ex-stock |

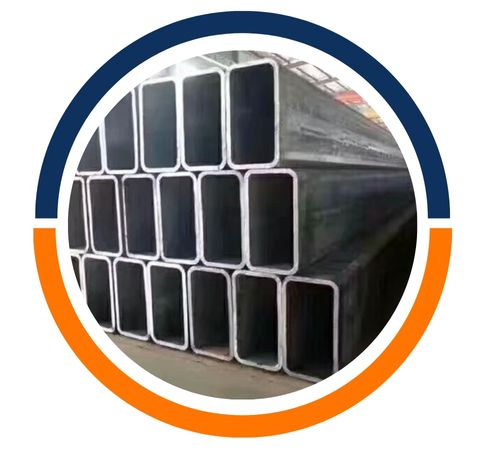

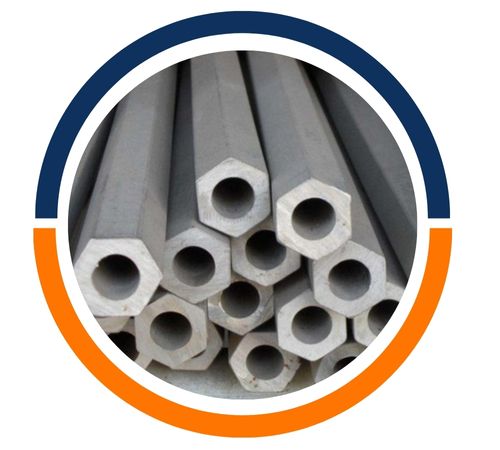

| Alloy Steel 4130 Pipes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Alloy Steel 4130 Pipe Manufacturing Techniques | Seamless |
| Alloy Steel 4130 Pipe Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Alloy Steel 4130 Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Alloy Steel Pipe | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless) Heat Number Manufacturer’s Name or Custom Logo – on request Marked Pipe Sample: ANSI B36.19 ASTM A 519 Alloy Steel 12″ NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Alloy Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Alloy Steel Pipes | Packed in Wooden Boxes, Plastic Bags, Alloy Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Element | Content (%) |
|---|---|
| Iron, Fe | 97.03 – 98.22 |
| Chromium, Cr | 0.80 – 1.10 |
| Manganese, Mn | 0.40 – 0.60 |
| Carbon, C | 0.280 – 0.330 |
| Silicon, Si | 0.15 – 0.30 |
| Molybdenum, Mo | 0.15 – 0.25 |
| Sulfur, S | 0.040 |
| Phosphorous, P | 0.035 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 560 MPa | 81200 psi |
| Hardness, Rockwell B (Converted from Brinell hardness) | 95 | 95 |
| Modulus of elasticity | 190-210 GPa | 27557-30458 ksi |
| Reduction of area | 59.6 | 59.60% |
| Shear modulus (Typical for steel) | 80 GPa | 11600 ksi |
| Hardness, Vickers (Converted from Brinell hardness) | 228 | 228 |
| Elongation at break (in 50 mm) | 21.50% | 21.50% |
| Poissons ratio | 0.27-0.30 | 0.27-0.30 |
| Bulk modulus (Typical for steel) | 140 GPa | 20300 ksi |
| Hardness, Knoop (Converted from Brinell hardness) | 240 | 240 |
| Hardness, Rockwell C (Converted from Brinell hardness, value below normal HRC range, for comparison purposes only.) | 17 | 17 |
| Hardness, Brinell | 217 | 217 |
| Machinability (Annealed and cold drawn. Based on 100% machinability for AISI 1212 steel.) | 70 | 70 |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm3 | 0.284 lb/in³ |
| Melting point | 1432°C | 2610°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is a major manufacturer and a supplier of premium AISI 4130 Pipes in Manila, the Philippines. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| Standard/ Grade | UNS | Temper | Specification |
|---|---|---|---|
| AISI 4130 Alloy Steel | UNS G41300 | N | MILT6736, AMS6360, AMS6371 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot | Standard to XXHY | Schedule Pipe # | Section Modulus | Gallon Capacity Per Linear Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 | STD | 40 | .0407 | .0158 |
| 0.147 | 0.546 | 1.09 | XHY | 80 | .0478 | .0122 | ||
| 0.188 | 0.464 | 1.31 | 160 | .0528 | .0088 | |||
| 0.294 | 0.252 | 1.72 | XXHY | .0577 | .0026 | |||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 | STD | 40 | .0705 | .0277 |
| 0.154 | 0.742 | 1.48 | XHY | 80 | .0853 | .0225 | ||
| 0.219 | 0.612 | 1.95 | 160 | .1006 | .0153 | |||
| 0.308 | 0.434 | 2.44 | XXHY | .1103 | .0077 | |||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 | STD | 40 | .1328 | .0449 |
| 0.179 | 0.957 | 2.17 | XHY | 80 | .1606 | .0374 | ||
| 0.250 | 0.815 | 2.85 | 160 | .1904 | .0271 | |||
| 0.358 | 0.599 | 3.66 | XXHY | .2136 | .0146 | |||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 | STD | 40 | .2346 | .0777 |
| 0.191 | 1.278 | 3.00 | XHY | 80 | .2913 | .0666 | ||
| 0.250 | 1.160 | 3.77 | 160 | .3421 | .0549 | |||
| 0.382 | 0.896 | 5.22 | .4110 | .0328 | ||||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 | STD | 40 | .3262 | .1058 |
| 0.200 | 1.500 | 3.63 | XHY | 80 | .4118 | .0918 | ||
| 0.281 | 1.338 | 4.86 | 160 | .5079 | .0730 | |||
| 0.400 | 1.100 | 6.41 | .5977 | .0494 | ||||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 | 10 | .4205 | .1898 | |
| 0.154 | 2.067 | 3.66 | STD | 40 | .5606 | .1743 | ||
| 0.218 | 1.939 | 5.03 | XHY | 80 | .7309 | .1534 | ||
| 0.250 | 1.875 | 5.68 | .8045 | .1434 | ||||
| 0.281 | 1.813 | 6.29 | .8666 | .1344 | ||||
| 0.344 | 1.687 | 7.47 | 160 | .9806 | .1161 | |||
| 0.436 | 1.503 | 9.04 | XXHY | 1.1043 | .0922 | |||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 | 10 | .6870 | .2833 | |
| 0.203 | 2.469 | 5.80 | STD. | 40 | 1.0640 | .2487 | ||
| 0.216 | 2.443 | 6.14 | 1.1169 | .2435 | ||||
| 0.250 | 2.375 | 7.02 | 1.2468 | .2301 | ||||
| 0.276 | 2.323 | 7.67 | XHY | 80 | 1.3386 | .2202 | ||
| 0.375 | 2.125 | 10.02 | 160 | 1.6371 | .1842 | |||
| 0.552 | 1.771 | 13.71 | XXXHY | 1.9971 | .1280 | |||
| 3 | 3.50 | 0.120 | 3.260 | 4.34 | 1.0411 | .4336 | ||
| 0.156 | 3.188 | 5.58 | 1.3122 | .4147 | ||||
| 0.172 | 3.156 | 6.12 | 1.4265 | .4064 | ||||
| 0.188 | 3.124 | 6.66 | 1.5342 | .3984 | ||||
| 0.216 | 3.068 | 7.58 | STD. | 40 | 1.7241 | .3840 | ||
| 0.250 | 3.000 | 8.69 | 1.9372 | .3672 | ||||
| 0.281 | 2.938 | 9.67 | 2.1207 | .3521 | ||||
| 0.300 | 2.900 | 10.26 | XHY | 80 | 2.2253 | .3431 | ||
| 0.438 | 2.624 | 14.34 | 160 | 2.8774 | .2811 | |||
| 0.600 | 2.300 | 18.6 | XXHY | 3.4243 | .2158 | |||
| 3 1/2 | 4.0 | 0.120 | 3.760 | 4.98 | 10 | 1.3776 | .5768 | |
| 0.226 | 3.548 | 9.12 | STD. | 140 | 2.3939 | .5136 | ||
| 0.250 | 3.500 | 10.02 | 2.6001 | .4998 | ||||
| 0.281 | 3.438 | 11.17 | 2.8562 | .4821 | ||||
| 0.318 | 3.364 | 12.52 | XHY | 80 | 3.1400 | .4617 | ||
| 0.636 | 2..728 | 22.87 | XXHY | 4.8795 | .3085 | |||
| 4 | 4.5 | 0.120 | 4.260 | 5.62 | 10 | 1.7612 | .7404 | |
| 0.156 | 4.188 | 7.24 | 2.2354 | .7156 | ||||
| 0.188 | 4.124 | 8.67 | 2.6296 | .6942 | ||||
| 0.203 | 4.094 | 9.32 | 2.8173 | .6838 | ||||
| 0.219 | 4.062 | 10.02 | 3.0184 | .6725 | ||||
| 0.237 | 4.026 | 10.80 | STD. | 40 | 3.2145 | .6613 | ||
| 0.250 | 4.000 | 11.36 | 3.3611 | .6528 | ||||
| 0.281 | 3.938 | 12.67 | 60 | 3.7021 | .6326 | |||
| 0.312 | 3.876 | 13.97 | 4.0273 | .6126 | ||||
| 0.337 | 3.826 | 15.00 | XHY | 80 | 4.2713 | .5972 | ||
| 0.438 | 3.624 | 19.02 | 120 | 5.1790 | .5361 | |||
| 0.531 | 3.438 | 22.53 | 160 | 5.8997 | .4822 | |||
| 0.674 | 3.152 | 27.57 | XXHY | 6.7927 | .4054 | |||
| 5 | 5.563 | 0.188 | 5.187 | 10.80 | 4.1161 | 1.0979 | ||
| 0.219 | 5.125 | 12.51 | 4.7279 | 1.0716 | ||||
| 0.258 | 5.047 | 14.63 | STD. | 40 | 5.4500 | 1.0391 | ||
| 0.281 | 5.001 | 15.87 | 5.8644 | 1.0204 | ||||
| 0.312 | 4.939 | 17.51 | 6.4074 | .99647 | ||||
| 0.344 | 4.875 | 19.19 | 6.9358 | .9696 | ||||
| 0.375 | 4.813 | 20.80 | XHY | 80 | 7.4300 | .9449 | ||
| 0.500 | 4.563 | 27.06 | 120 | 9.2534 | .8495 | |||
| &nbsnbsp; | 0.625 | 4.313 | 32.99 | 160 | 10.7976 | .7590 | ||
| 0.750 | 4.063 | 38.59 | XXHY | 12.0954 | .6734 | |||
| 6 | 6.625 | 0.109 | 6.407 | 7.59 | 5 | 3.5769 | 1.6748 | |
| 0.134 | 6.357 | 9.30 | 10 | 4.3475 | 1.6488 | |||
| 0.156 | 6.313 | 10.79 | 5.0107 | 1.6260 | ||||
| 0.188 | 6.249 | 12.94 | 5.9351 | 1.5937 | ||||
| 0.203 | 6.219 | 13.94 | 6.3804 | 1.5780 | ||||
| 0.219 | 6.187 | 15.00 | 6.8261 | 1.5620 | ||||
| 0.250 | 6.125 | 17.04 | 7.6905 | 1.5306 | ||||
| 0.280 | 6.065 | 18.99 | STD. | 40 | 8.4958 | 1.5008 | ||
| 0.312 | 6.001 | 21.06 | 9.3416 | 1.4688 | ||||
| 0.344 | 5.937 | 23.10 | 10.111 | 1.4391 | ||||
| 0.375 | 5.875 | 25.05 | 10.893 | 1.4082 | ||||
| 0.432 | 5.761 | 28.60 | XHY | 80 | 12.224 | 1.3541 | ||
| 0.500 | 5.625 | 32.74 | 13.711 | 1.2909 | ||||
| 0.562 | 5.501 | 36.43 | 120 | 14.9806 | 1.2346 | |||
| 0.625 | 5.375 | 40.09 | 16.1821 | 1.1787 | ||||
| 0.719 | 5.187 | 45.39 | 160 | 17.8243 | 1.0977 | |||
| 0.864 | 4.897 | 53.21 | XXHY | 20.025 | .9784 | |||
| 1.000 | 4.625 | 60.13 | 21.7719 | .8727 | ||||
| 1.125 | 4.375 | 66.14 | 23.1237 | .7809 |
Liam Steel’s AISI 4130 Pipes find extensive use in **automotive, aerospace, oil and gas, power generation, and heavy machinery industries**. They are particularly suited for **hydraulic systems, structural tubing, mechanical shafts, pressure vessels, pipelines, and high-load applications**, where strength, toughness, and reliability are non-negotiable. With excellent resistance to wear, fatigue, and impact, these pipes ensure safe and efficient operation even in the most demanding conditions. When you choose Liam Steel’s AISI 4130 Pipes, you’re opting for high-quality, durable, and cost-effective solutions that promise long-lasting performance for critical industrial and engineering needs.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
