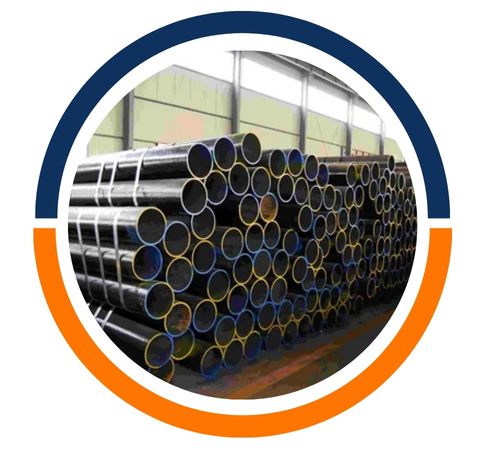

Liam Steel is a well-respected manufacturer and supplier located in Manila, Philippines, known for its high-quality Alloy Steel T11 Tubing. With a strong reputation for precision engineering, durability, and performance, Liam Steel provides tubing products that meet international standards for high-temperature and pressure applications. The company caters to a variety of industries, including power generation, petrochemical, and industrial manufacturing, offering dependable solutions for tough operating conditions. Thanks to advanced production technology, rigorous quality assurance, and a dedication to customer satisfaction, Liam Steel has established itself as a reliable source for Alloy Steel T11 Tubing both in the Philippines and around the globe.
Alloy Steel T11 Tubing is primarily made of iron, combined with alloying elements like chromium (1.00–1.50%), molybdenum (0.44–0.65%), carbon (0.05–0.15%), and trace amounts of manganese, silicon, and sulfur. This unique blend gives it remarkable strength, hardness, and resistance to oxidation and corrosion, especially at high temperatures. In terms of mechanical properties, T11 tubing boasts a minimum tensile strength of 415 MPa, a yield strength of 205 MPa, and good ductility. It remains structurally stable even under high-stress, high-temperature conditions, making it perfect for thermal systems and pressure equipment.
| ASTM A213 T11 Specification & Standard | ASTM A213 T11, ASME SA213 T11 (with IBR Test Certificate) |
|---|---|
| SA 213 Gr T11 Specification | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/ 90/ Part II/ 620 & 622 DIN/ 17175/ 13CrMo44 DIN/ 17175/ 10CrMo910 DIN/ 17175/ 15Mo3 |
| T11 Steel Tube Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| ASME SA213 Grade T11 Tubing Size | 6.35 mm OD to 101.6 mm OD |
| A213 Grade T11 Pipe Thickness | 3-12mm |
| SA213 Grade T11 Material Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| Craft | Cold rolled and Cold drawn |
| A213 Grade T11 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T11 Steel Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| ASME SA213 Grade T11 Tube Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| SA 213 Gr T11 Tube Length | Standard Double & In Cut length also. |
| SA213 Grade T11 Tube End | Plain End, Beveled End, Treaded |
| A213 Grade T11 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Specialized in |
|
| SA 213 Gr T11 Tube Application & uses | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| Grade | C≤ | Mn | P≤ | S≤ | Si≤ | Mo |
|---|---|---|---|---|---|---|
| SA213 T11 Composition | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.0 | 0.44~0.65 |
| Grade | SA 213 T11 Tensile Strength, MPa | Yield Strength, MPa |
|---|---|---|
| T11 | 415 min | 205 min |
| SA 213 Gr T11 Density | Elongation, % | Hardness, HB |
| 7.85 g/cc | 30 min | 179 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T11 Tubing in Manila, Philippines. We provide premium steel materials and a comprehensive range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to timely delivery and exceptional customer service, we use only the finest raw materials to ensure superior performance in industrial applications with stringent requirements. Contact us today for all your Alloy Steel T11 Tubing needs!
Alloy Steel T11 Tubing is extensively utilized in applications that demand efficient heat transfer and durability under thermal and mechanical stress. It’s commonly found in boilers, heat exchangers, superheaters, and reheaters in power plants. Its resistance to creep, oxidation, and corrosion also makes it ideal for chemical processing, oil and gas refineries, and steam pipelines. With its ability to retain strength and toughness in extreme environments, Alloy Steel T11 Tubing ensures reliable, long-term performance, making it a top choice for critical components in energy, petrochemical, and industrial operations.
