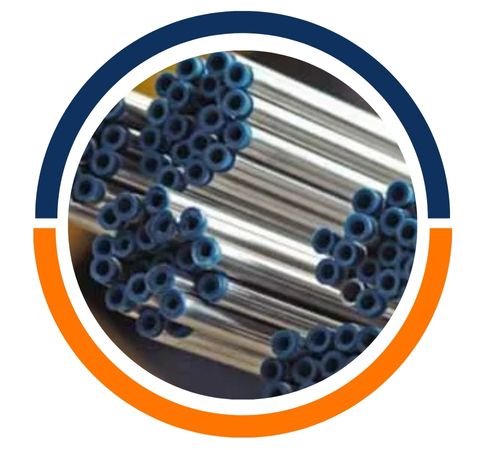

Liam Steel stands out as a top-notch manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Alloy Steel T92 Tubing. Known for its impressive high-temperature strength, resistance to corrosion, and overall durability, Liam Steel’s T92 tubing is designed to meet the rigorous demands of global quality standards. The company serves a variety of industrial sectors, providing tubing solutions that consistently perform well under extreme pressure and heat. Thanks to advanced manufacturing techniques, strict quality control, and a commitment to customer satisfaction, Liam Steel has earned a solid reputation as a reliable source for Alloy Steel T92 Tubing in power generation, petrochemical, and heavy engineering fields, both in the Philippines and beyond.
Alloy Steel T92 Tubing is primarily made of iron, featuring essential alloying elements like chromium (8.5–9.5%), molybdenum (0.3–0.6%), tungsten (1.5–2.0%), and vanadium (0.15–0.25%), along with trace amounts of niobium, nitrogen, and carbon. This unique blend boosts its creep strength, oxidation resistance, and hardness at high temperatures. The mechanical properties of T92 tubing include a minimum tensile strength of 620 MPa, yield strength of 440 MPa, and remarkable ductility and toughness. These characteristics make it perfect for long-term use in environments that experience high heat, stress, and pressure changes.
| SA213 T92 Tube Standard | ASTM A213 T92, SA213 T92 (with IBR Test Certificate) |
|---|---|
| SA213 T92 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T92 Tube Thickness | 3-12mm |
| SA213 T92 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T92 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| SA213 T92 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T92 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T92 Tube Length | Standard Double & In Cut length also. |
| SA213 T92 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T92 Boiler Tube, SA213 T92 Heater Tube, SA213 T92 Heat Exchanger Tube |
| SA213 gr T92 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T92 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
| C, % | Mn, % | P, % | S, % | Si, % | Cr, % | Mo, % | V, % | N, % | Ni, % | Al, % | Nb, % | W, % | B, % |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.07-0.13 | 0.3-0.6 | 0.02 max | 0.01 max | 0.5 max | 8.5-9.5 | 0.3-0.6 | 0.15-0.25 | 0.03-0.07 | 0.4 max | 0.04 max | 0.04-0.09 | 1.5-2.0 | 0.001-0.006 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| ASTM A213 T92 Tubing | 585 min | 415 min | 20 min | 250 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outside Diameter | OD Tolerance | WT Tolerance | Ovality Tolerance | Cut Length Tolerance |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15 % | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD ≤ 38, 1 mm | ± 0, 13 mm | ± 10 % | max, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD ≤ 88, 9 mm | ± 0, 25 mm | ± 10 % | max, 2, 41 mm | + 4, 76 mm, – 0 mm |
Jaxon Steel is a leading manufacturer and distributor of high-quality Alloy Steel T92 Tubing in Manila, Philippines. We offer top-grade steel materials and a broad range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source only the finest raw materials to ensure superior performance in industrial applications with demanding specifications. Contact us today for all your Alloy Steel T92 Tubing needs!
Alloy Steel T92 Tubing finds extensive application in industries that require exceptional thermal and mechanical performance. It’s commonly used in superheaters, reheaters, boiler tubes, and heat exchangers in both ultra-supercritical and subcritical power plants. Additionally, it plays crucial roles in petrochemical refineries, steam piping systems, and high-efficiency thermal power units. Its outstanding resistance to creep, oxidation, and thermal fatigue guarantees a long service life and reliability. Thanks to its ability to maintain mechanical integrity under harsh conditions, T92 tubing is an excellent choice for modern energy, chemical processing, and industrial engineering applications.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
