Liam Steel, located in Manilas, Philippines, is a trusted provider of high-quality CS API X42 5L PSL 1 Pipes. We focus on making and supplying top-grade steel products, including carbon and alloy steel pipes and fittings. To ensure great quality, our products go through careful testing like hydrostatic testing, ultrasonic inspection, tensile strength testing, and chemical analysis. These checks help make sure our products are strong, durable, and meet global standards. At Liam Steel, we work hard to create well-made steel solutions with strong quality checks, making us a popular choice for reliable piping systems.

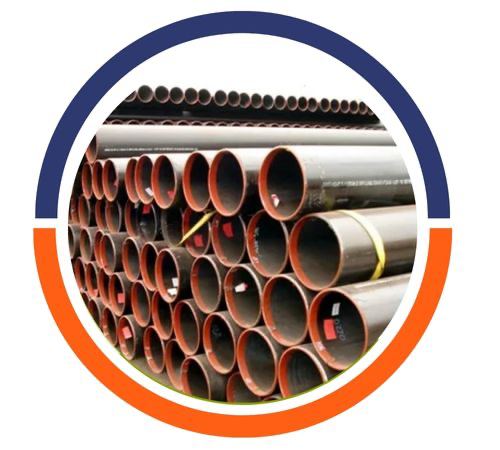

API X42 5L PSL 1 Pipes are strong carbon steel pipes. They are made for carrying oil and gas. The API 5L standard guarantees these pipes meet strict rules for strength, durability, and how well they work in different conditions. API X42 is in Grade X42. It has a minimum yield strength of 42,000 psi (290 MPa). The pipes mainly consist of carbon steel. They have a set chemical mix of 0.26% carbon (C), 1.0% manganese (Mn), and small amounts of silicon (Si), phosphorus (P), sulfur (S), and other elements. This mix boosts their strength, how easy they are to weld, and helps with resistance to rust.
| Material Data Sheet | X42 / L290 (N, M, Q, R) X42 PSL1: 1.0483 X42 PSL2: 1.0484 |
| Standard | ISO 3183 L290/ API 5L X42 |
| API 5L X42 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| X42 SAW | 16″ – 100″ NB |
| API 5L X42 PSL1 ERW and HFW | 1/2” NB – 24” NB |
| X42 Carbon Steel LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L Grade X42 Pipe end | Pub Joints, Buttweld, Coupling, Vibrator Grinding, Square Cut, Squared Ends, Beveled End (BE), Cut Grooves, Deburring, Plain end (PE), Screwed, Flanged Ends, Grooved, Socket, Chamfering, Threaded Ends (Male & Female), Thread Cutting, |
| X42 Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| API 5L X42 Wall Thickness | SCH160, SCH40, SCH-XXS, SCH-XS, SCH-STD, SCH80, |
| PSL Level | |
| Coating for API 5L X42 Line Pipe | lined pipe, 3PE, FBE, Anti-Rust Oil, 3LPE, Black Painting, Galvanized, CRA clad, 3PP, Varnished, |
| C | Mn | P | V | Nb | Ti | |
| maxb | maxb | max. | max. | max. | max. | max. |
| 0.28 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 245(35 500) | 415(60 200) | 28% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| S (in) | Outside Diameter (in) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
| PSL 2 Pipe Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
Liam Steel is a leading supplier of high-quality CS API X42 5L PSL 1 Pipes products in Manila, Philippines. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
CS API X42 5L PSL 1 Pipes are often used to move oil, gas, and water. They work well in high-pressure areas. These pipes are very important for systems that need strength and durability. You will find them in hydrocarbon processing, providing lines, and water distribution systems, where they need to handle both high pressure and tough outside conditions. The key industries using API X42 5L PSL 1 Pipes include oil, gas, petrochemical, water treatment, and energy. They can handle high pressures and resist damage, making them great for long-distance use and critical projects.
