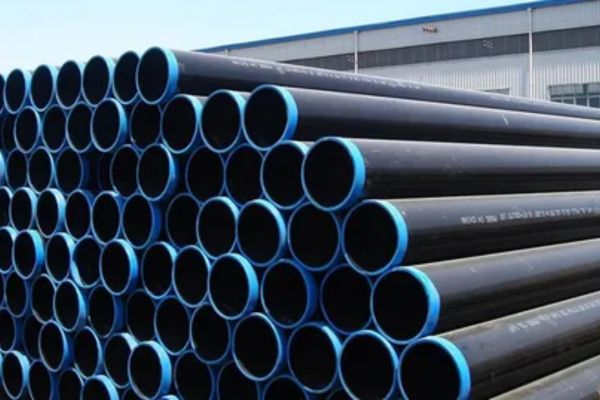

Liam Steel, a well-respected manufacturer and supplier located in Manila, Philippines, specializes in high-quality Carbon Steel API X56 5L PSL 1 Pipes. These pipes are crafted for strength, durability, and reliable performance, even in the toughest environments. Built to meet API 5L PSL 1 standards, they are perfect for oil, gas, and petrochemical applications. Liam Steel prides itself on precision engineering, a superior surface finish, and rigorous quality control to satisfy global industry standards. With a strong commitment to excellence, the company delivers dependable and cost-effective piping solutions that clients trust both locally and internationally.
The Carbon Steel API X56 5L PSL 1 Pipes are primarily composed of carbon (≤0.28%), manganese (≤1.4%), phosphorus (≤0.03%), and sulfur (≤0.03%), which contribute to their outstanding mechanical properties. These pipes boast a minimum yield strength of 390 MPa and a tensile strength of 490 MPa, ensuring good weldability, toughness, and resistance to stress corrosion. The PSL 1 grade guarantees consistency, durability, and performance for medium-pressure fluid transportation systems.
| Grade of material | X56 / L390 (N, M, Q, R) |
| Standard | ISO 3183 L390/ API 5L X56 |
| API 5L X56 Seamless Pipe (OD) | 21.3 – 660mm ( Inch 1/2” – 26”) |
| X56 SAW | 16″ – 100″ NB |
| API 5L X56 PSL1 ERW and HFW | 1/2” NB – 24” NB |
| X56 Steel LSAW / DSAW | 16’OD TO 54″ OD (8 MM TO 50 MM THK) |
| API 5L X56 PSL1 Pipe end | Square Cut, Buttweld, Pub Joints, Squared Ends, Thread Cutting, Socket, Cut Grooves, Coupling, Deburring, Vibrator Grinding, Plain end (PE), Chamfering, Threaded Ends (Male & Female), Screwed, Beveled End (BE), Flanged Ends, Grooved |
| X56 Carbon Steel Pipe Length | DRL, SRL, 20FT, 40FT, Single Random Length (SRL), Double Random Length (DRL), and Fixed Length 5.8 Meter, 12.0 Meters (40FT), 6.0 Meters (20FT), 11.8 Meters, |
| API 5L X56 Wall Thickness | SCH80, SCH160, SCH-XS, SCH-XXS, SCH-STD, SCH40, |
| PSL Level | |
| Coating for API 5L X56 Line Pipe | Black Painting, CRA clad, 3PE, 3PP, 3LPE, FBE, Galvanized, lined pipe, Anti-Rust Oil, Varnished, |
| Mass fraction, based upon heat and product analysis a | |||||||
| PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28 | 1.40 | – | 0.030 | 0.030 | d | d | d |
| .S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 490(71 100) | F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS (in) | Outside Diameter (in) | API 5L X56 Pipe Schedule | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCH 10 | SCH 20 | SCH 30 | SCH STD | SCH 40 | SCH 60 | SCH XS | SCH 80 | SCH 100 | SCH 120 | SCH 140 | SCH 160 | SCH XXS | ||
| Wall Thickness (in) | ||||||||||||||
| 1/8 | 0.405 | 0.068 | 0.068 | 0.095 | 0.095 | |||||||||
| 1/4 | 0.540 | 0.088 | 0.088 | 0.119 | 0.119 | |||||||||
| 3/8 | 0.675 | 0.091 | 0.091 | 0.126 | 0.126 | |||||||||
| 1/2 | 0.840 | 0.109 | 0.109 | 0.147 | 0.147 | 0.187 | 0.294 | |||||||
| 3/4 | 1.050 | 0.113 | 0.113 | 0.154 | 0.154 | 0.219 | 0.308 | |||||||
| 1 | 1.315 | 0.133 | 0.133 | 0.179 | 0.179 | 0.250 | 0.358 | |||||||
| 1 1/4 | 1.660 | 0.140 | 0.140 | 0.191 | 0.191 | 0.250 | 0.382 | |||||||
| 1 1/2 | 1.900 | 0.145 | 0.145 | 0.200 | 0.200 | 0.281 | 0.400 | |||||||
| 2 | 2.375 | 0.154 | 0.154 | 0.218 | 0.218 | 0.344 | 0.436 | |||||||
| 2 1/2 | 2.875 | 0.203 | 0.203 | 0.276 | 0.276 | 0.375 | 0.552 | |||||||
| 3 | 3.500 | 0.216 | 0.216 | 0.300 | 0.300 | 0.438 | 0.600 | |||||||
| 3 1/2 | 4.000 | 0.226 | 0.226 | 0.318 | 0.318 | |||||||||
| 4 | 4.500 | 0.237 | 0.237 | 0.337 | 0.337 | 0.438 | 0.531 | 0.674 | ||||||
| 5 | 5.563 | 0.258 | 0.258 | 0.375 | 0.375 | 0.500 | 0.625 | 0.750 | ||||||
| 6 | 6.625 | 0.280 | 0.280 | 0.432 | 0.432 | 0.562 | 0.719 | 0.864 | ||||||
| 8 | 8.625 | 0.250 | 0.277 | 0.322 | 0.322 | 0.406 | 0.500 | 0.500 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 | |
| 10 | 10.750 | 0.250 | 0.307 | 0.365 | 0.365 | 0.500 | 0.500 | 0.594 | 0.719 | 0.844 | 1.000 | 1.125 | 1.000 | |
| 12 | 12.750 | 0.250 | 0.330 | 0.375 | 0.406 | 0.562 | 0.500 | 0.688 | 0.844 | 1.000 | 1.125 | 1.312 | 1.000 | |
| 14 | 14.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.500 | 0.750 | 0.938 | 1.094 | 1.250 | 1.406 | |
| 16 | 16.000 | 0.250 | 0.312 | 0.375 | 0.375 | 0.500 | 0.656 | 0.500 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | |
| 18 | 18.000 | 0.250 | 0.312 | 0.438 | 0.375 | 0.562 | 0.750 | 0.500 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | |
| 20 | 20.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.594 | 0.812 | 0.500 | 1.031 | 1.281 | 1.500 | 1.750 | 1.969 | |
| 22 | 22.000 | 0.250 | 0.375 | 0.500 | 0.375 | 0.875 | 0.500 | 1.125 | 1.375 | 1.625 | 1.875 | 2.125 | ||
| 24 | 24.000 | 0.250 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.500 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | |
| 30 | 30.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.500 | ||||||||
| 32 | 32.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 34 | 34.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.688 | ||||||||
| 36 | 36.000 | 0.312 | 0.500 | 0.625 | 0.375 | 0.750 | ||||||||
| 42 | 42.000 | 0.500 | 0.625 | 0.375 | 0.750 | |||||||||
Liam Steel is a leading supplier of high-quality Carbon Steel API X56 5L PSL 1 Pipes products in Manila, Philippines. We focus on steel solutions and offer a variety of products. This includes Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our products are Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are known for our good delivery and excellent customer care. We aim to provide strong and durable steel materials for many industrial uses. We work hard to meet high standards, making us a trusted partner for your steel needs.
These pipes are extensively used in oil and gas transmission lines, refineries, petrochemical plants, and offshore operations. They are well-suited for transporting natural gas, crude oil, and water under moderate to high pressure. Thanks to their robust mechanical strength, corrosion resistance, and long service life, they are ideal for infrastructure projects, pipeline construction, and applications in the energy sector. Additionally, these pipes are utilized in structural and mechanical systems that demand reliability, precise dimensions, and compliance with international API 5L PSL 1 standards.
