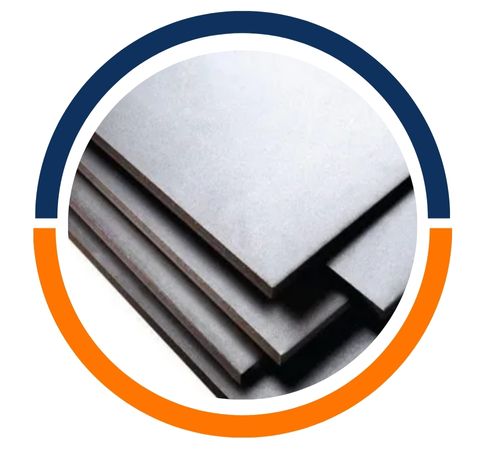

Liam Steel is a reputable manufacturer and supplier based in Manila, Philippines, known for its top-notch SA 516 GR.60/70N NACE HIC plates. These plates are crafted to meet rigorous industry standards, providing exceptional resistance to hydrogen-induced cracking (HIC) even in tough environments. At Liam Steel, every plate is meticulously produced, following strict quality controls to cater to the unique requirements of clients in sectors like oil and gas, chemicals, and power generation. Their dedication to quality and customer satisfaction has earned them a solid reputation as a leading supplier in the area.
SA 516 GR.60/70N NACE HIC plates are made from carbon steel alloys with low to medium carbon content. The composition features carbon (up to 0.26%), manganese (0.90-1.35%), silicon (0.15-0.40%), sulfur (up to 0.03%), and phosphorus (up to 0.03%). These plates are specifically engineered to withstand hydrogen-induced cracking (HIC) in corrosive settings. Their mechanical properties include a minimum yield strength of 260 MPa (GR.60) and 290 MPa (GR.70), tensile strength ranging from 485 to 620 MPa, and an elongation of 20% over 8 inches, ensuring they are durable and reliable for pressure vessel applications.
| Grade | ASME SA 516 GR.60/70N Boiler and Pressure Vessel Steel Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60/70N NACE and HIC Plates in Manila, Philippines. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60/70N NACE and HIC Plates needs!
SA 516 GR.60/70N NACE HIC plates are mainly utilized in building pressure vessels, storage tanks, and reactors across various industries, including oil and gas, petrochemicals, and power generation. Their ability to resist hydrogen-induced cracking makes them perfect for environments where hydrogen sulfide and other corrosive substances are a concern. You’ll also find these plates in offshore platforms, refineries, and chemical plants, where having high-strength, corrosion-resistant materials is essential for safety and durability. Plus, their outstanding weldability and formability make them easy to work with for complex industrial applications.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
