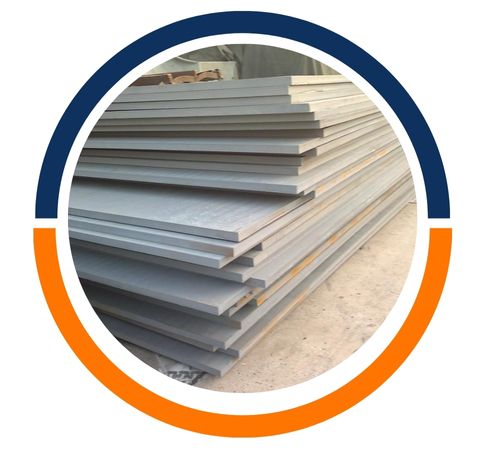

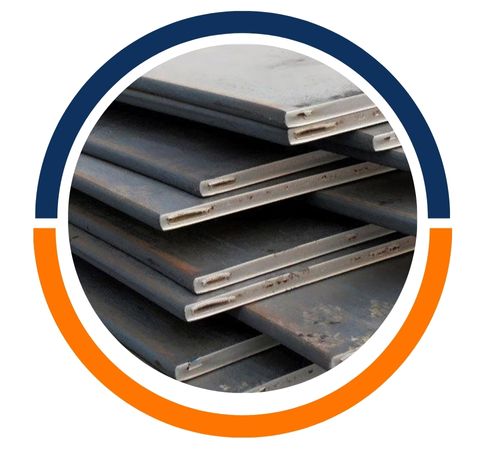

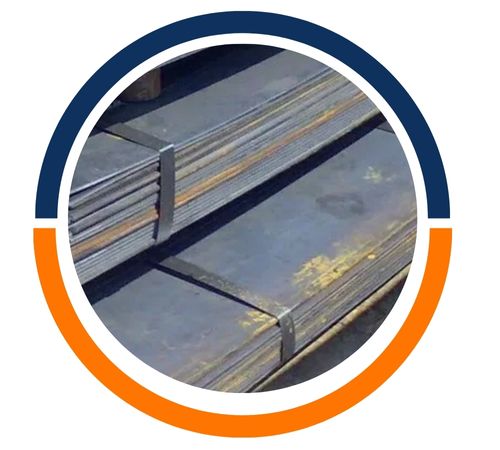

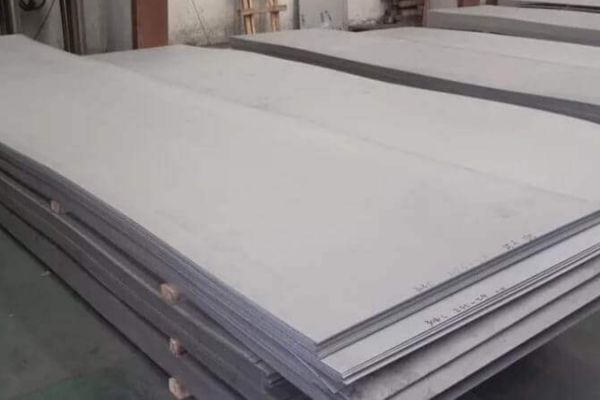

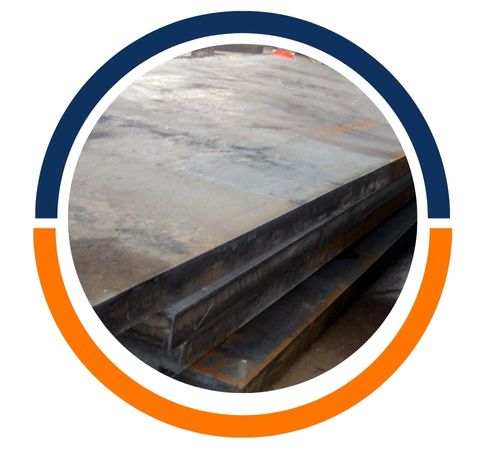

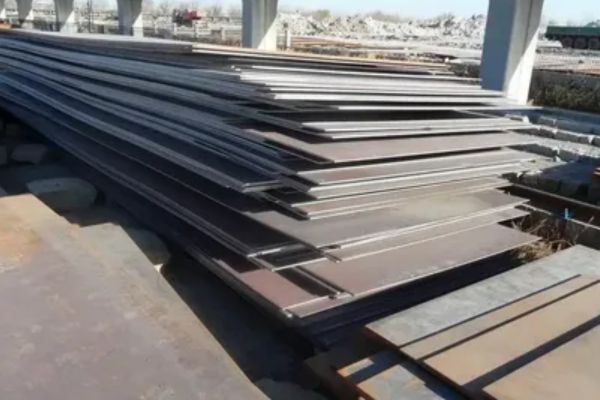

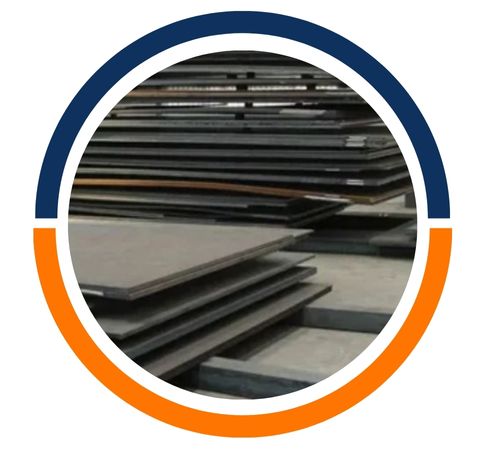

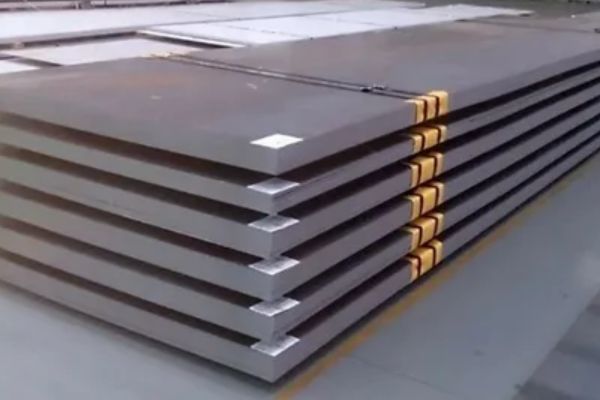

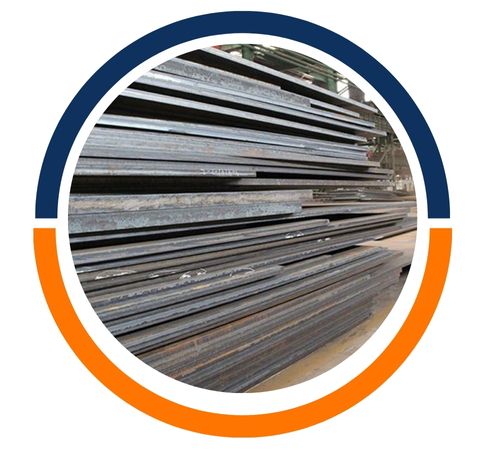

Liam Steel is a reputable manufacturer and supplier of ABS EH36 Shipbuilding Steel Sheets and Plates based in Manila, Philippines. The company has built a solid reputation for providing top-notch marine-grade steel materials that adhere to international standards. ABS EH36 steel is specifically engineered to endure the tough conditions of marine environments, offering remarkable strength, durability, and resistance to corrosion. Liam Steel makes it a priority to ensure that every plate and sheet goes through rigorous quality checks to ensure reliability and performance. These steel sheets and plates find extensive use in shipbuilding, offshore structures, and marine engineering projects, where exceptional toughness and longevity are crucial.
ABS EH36 Shipbuilding Steel Sheets and Plates are mainly made up of carbon, manganese, silicon, phosphorus, sulfur, nickel, chromium, and molybdenum. This unique blend gives the steel impressive tensile strength, high yield strength, and excellent impact toughness, even in low temperatures. Additionally, the steel boasts good weldability and formability, making it a breeze to fabricate and assemble. With a minimum yield strength of 355 MPa and strong resistance to corrosion and stress, ABS EH36 strikes the perfect balance of strength and durability needed for marine and offshore structural applications.
STANDARD: ASTM A131, ASME SA131
PLATES QUALITY: EH36(Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| Grade EH36 | C | Si | Mn | P | S | V | Al | Cr | Cu | Mo | Nb | Ni | Ti |
| 0.180 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.05-0.10 | 0.015 | 0.2 | 0.35 | 0.08 | 0.02-0.05 | 0.4 | 0.02 |
| Grade | Thickness(mm) | MinYield(Mpa) | Tensile(Mpa) | Elongation (%) | Charpy V Impact Test | |
| Grade ABS EH36 | t≤50 | Min 355 Mpa | 490-620 Mpa | 21% | 24J | 34J |
| 50＜t≤70 | Min 355 Mpa | 490-620 Mpa | 21% | 27J | 41J | |
| 70＜t≤100 | Min 355 Mpa | 490-620 Mpa | 21% | 34J | 50J | |
| Grade | DNV | GL | LR | BV | CCS | NK | KR | RINA |
| ABS EH36 | NV E36 | GL-E36 | LR/EH36 | BV/EH36 | CCS/E36 | K E36 | R E36 | RI/E36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality ABS EH36 Shipbuilding Steel Sheet and Plates in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| EH36 | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
ABS EH36 Shipbuilding Steel Sheets and Plates are extensively utilized in the shipbuilding and offshore industries. They are perfect for constructing ship hulls, decks, bulkheads, and the structural components of cargo vessels, tankers, and offshore platforms. Their outstanding strength and resistance to corrosion make them ideal for the harsh conditions of the ocean, where long-term reliability is a must. These steel plates are also employed in marine equipment, drilling rigs, and coastal structures. Engineers favor ABS EH36 for its remarkable toughness, ease of fabrication, and ability to perform under heavy loads and extreme weather conditions.
