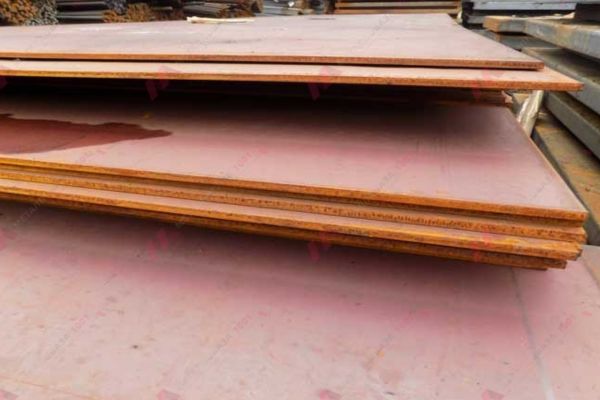

Liam Steel, based in Manila, Philippines, stands out as a top manufacturer and supplier of Weathering Steel Sheets and Plates, known for their remarkable performance in outdoor and exposed settings. With a focus on high-quality, durable steel, Liam Steel offers weathering steel products specifically designed to withstand corrosion and the wear and tear of the atmosphere. These materials are perfect for applications that need long-lasting protection without the hassle of frequent maintenance, as they develop a protective patina over time, boosting both their visual appeal and durability. Catering to sectors like construction, infrastructure, and transportation, Liam Steel is dedicated to providing premium products that align with international standards and meet customer expectations.
Weathering Steel Sheets and Plates, often referred to as COR-TEN steel, are made from a blend of carbon, copper, chromium, nickel, and phosphorus, which grant them exceptional resistance to corrosion and atmospheric wear. The high copper content plays a crucial role in forming a stable oxide layer, or patina, that shields the material from further corrosion. In terms of mechanical properties, these steels boast a yield strength of around 345 MPa and a tensile strength reaching up to 490 MPa, along with impressive toughness and a high strength-to-weight ratio. Their excellent weather resistance makes them perfect for outdoor applications, requiring minimal protective coatings or maintenance.
| Thickness | Width | Length |
|---|---|---|
| 1/4 to 1/2 “ | 48 “ | 120″ |
| Grades | Application | Weldability |
| A & B | building facades to construct roofs | anual welding or submerged arc welding |
| Si % max. | C % max. | Mn % | Z% | S % max. | P % | N % max. | Cr % | V% | Cu % | Ni% | Mo% | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| According to EN 10027-1 & CR 10260 | ||||||||||||
| S235J2W | 0.40 | 0.13 | 0.20-0.60 | 0.03 | 0.04 | 0.40-0.80 | 0.25-0.55 | 0.65 | ||||
| S235J0W | 0.40 | 0.13 | 0.20-0.60 | 0.04 | 0.04 | 0.01 | 0.40-0.80 | 0.25-0.55 | 0.65 | |||
| S355J2WP | 0.75 | 0.12 | 1.00 | 0.03 | 0.06-0.15 | 0.30-1.25 | 0.25-0.55 | 0.65 | ||||
| S355J0W | 0.75 | 0.12 | 1.00 | 0.04 | 0.06-0.15 | 0.01 | 0.30-1.25 | 0.25-0.55 | 0.65 | |||
| S355J2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | ||
| S355J0W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.04 | 0.04 | 0.01 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | |
| S355K2W | 0.50 | 0.16 | 0.50-1.50 | 0.15 | 0.03 | 0.03 | 0.40-0.80 | 0.25-0.55 | 0.65 | 0.30 | ||
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Element | Weathering Steel B | Weathering Steel A |
|---|---|---|
| Tensile strength Rm MPa | 485 | 485 |
| Minimum yield point ReH Mpa *) | 345 | 345 |
| Minimum elongation A (Lo=5.65 vSo) % | 19 | 20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality Weathering Steel Sheet and Plate in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Length | Width | Weight (lbs/ft) |
|---|---|---|---|
| 1/2″ | 120.00″ | 48.00″ | 20.420 |
| 1/4″ | 120.00″ | 60.00″ | 10.210 |
| 1/4″ | 120.00″ | 48.00″ | 10.210 |
| 3/8″ | 120.00″ | 48.00″ | 15.315 |
| Thickness | Weight / Ft. |
|---|---|
| 1/4 | 10.21 lb |
| 3/16 | 7.66 lb |
| 1/2 | 20.42 lb |
| 3/8 | 15.31 lb |
| 1 | 40.84 lb |
| 3/4 | 30.63 lb |
| 1-1/2 | 61.26 lb |
Weathering Steel Sheets and Plates are a go-to choice for outdoor structures that need to stand up to the elements while looking great. You’ll often find them in bridges, highway structures, buildings, sculptures, and architectural facades. What makes this steel special is its ability to develop a protective rust layer, which is perfect for tough environments like coastal areas or busy infrastructure. Plus, it’s commonly used in railways, transportation vehicles, and agricultural equipment because it’s durable and low-maintenance. With its impressive longevity and unique visual patina, weathering steel is a favorite for both practical and decorative outdoor projects, blending strength with a charming, rustic appearance.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
