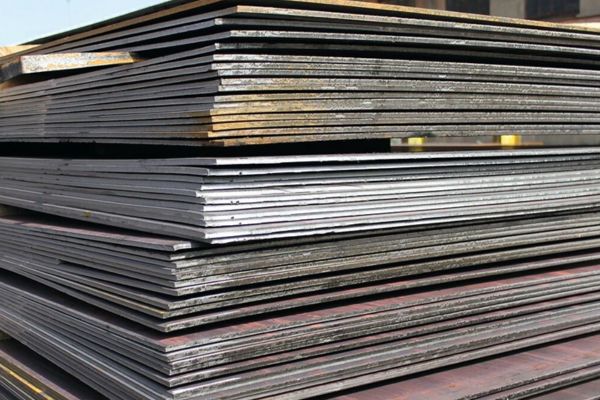

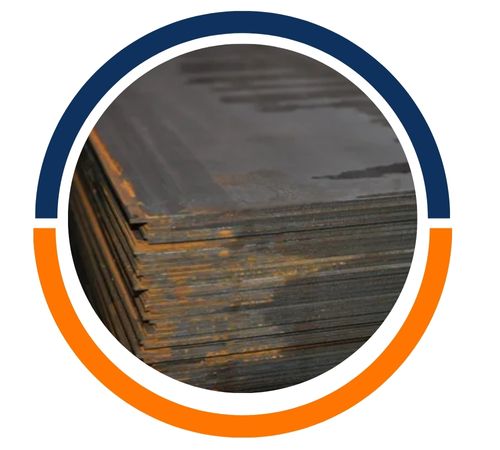

Liam Steel, a well-known manufacturer and supplier located in Manila, Philippines, specializes in high-quality IS 2062 E250C Plates that are celebrated for their exceptional strength, toughness, and weldability. These plates are crafted in accordance with Indian Standard specifications and find extensive use in structural, construction, and engineering projects. Liam Steel takes pride in ensuring that each plate goes through rigorous quality control and precision finishing to align with international standards. With cutting-edge production technology and dependable material sourcing, the company delivers durable and cost-effective steel plate solutions that are perfect for heavy-duty fabrication and high-stress industrial settings.
When it comes to Composition and Mechanical Properties, IS 2062 E250C Plates are made up of a blend of carbon, manganese, phosphorus, sulfur, and silicon, striking a perfect balance between strength and ductility. These plates boast a minimum yield strength of 250 MPa and a tensile strength ranging from 410 to 540 MPa, along with impressive elongation characteristics. They also show good impact resistance, weldability, and formability, making them a great fit for a variety of fabrication processes. Thanks to their fine-grain structure and consistent mechanical performance, they provide reliability in high-load and dynamic situations, ensuring stability and durability even in tough operating conditions.
| Item | Hot Rolled Medium and High Tensile Structural Steel – IS 2062 E250C |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Mn | S | P | Si | Carbon Equivalent (CE), Max |
|---|---|---|---|---|---|---|
| IS 2062 E 250 C | 0.20 | 1.50 | 0.040 | 0.040 | 0.40 | 0.39 |
| Grade | Yield strength N/mm2 | Tensile strength N/mm2 | Elongation (%) |
|---|---|---|---|
| IS 2062 E250 C | 250 min | 410 min | 23 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Liam Steel is one of the most prominent manufacturers and suppliers of superior quality IS 2062 E250C Plates in Manila, Philippines. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| Thickness | Length x Width | Mass per Sq m | Thickness | Length x Width | Mass per Sq m |
|---|---|---|---|---|---|
| mm | mm | Kg/m2 | mm | mm | Kg/m2 |
| 3 | 2500 x 1250 mm | 23.055 | 30.000 | 2500 x 1250 | 235.050 Kg/m2 |
| 3 | 3000 x 1500 mm | 23.055 | 30.000 | 3000 x 1500 | 235.050 Kg/m2 |
| 3 | 2000 x 1000 mm | 23.055 | 30.000 | 2000 x 1000 | 235.050 Kg/m2 |
| 3 | 3660 x 1830 mm | 23.055 | 30.000 | 4000 x 2000 | 235.050 Kg/m2 |
| 4 | 2000 x 1000 mm | 31.040 | 30.000 | 5000 x 2500 | 235.050 Kg/m2 |
| 3 | 4000 x 2000 mm | 23.055 | 30.000 | 5000 x 1250 | 235.050 Kg/m2 |
| 4 | 2500 x 1250 mm | 31.040 | 30.000 | 6000 x 2500 | 235.050 Kg/m2 |
| 4 | 3660 x 1830 mm | 31.040 | 32.000 | 2000 x 1000 | 251.020 Kg/m2 |
| 5 | 2000 x 1000 mm | 39.025 | 32.000 | 2500 x 1250 | 251.020 Kg/m2 |
| 5 | 4000 x 2000 mm | 39.025 | 35.000 | 4000 x 2000 | 274.075 Kg/m2 |
| 4 | 3000 x 1500 mm | 31.040 | 30.000 | 10000 x 2500 | 235.050 Kg/m2 |
| 5 | 2500 x 1250 mm | 39.025 | 32.000 | 3000 x 1500 | 251.020 Kg/m2 |
| 5 | 3660 x 1830 mm | 39.025 | 32.000 | 5000 x 2500 | 251.020 Kg/m2 |
| 5 | 4000 x 1750 mm | 39.025 | 35.000 | 2500 x 1250 | 274.075 Kg/m2 |
| 5 | 3000 x 1500 mm | 39.025 | 32.000 | 4000 x 2000 | 251.020 Kg/m2 |
| 5 | 6000 x 2000 mm | 39.025 | 40.000 | 2000 x 1000 | 314.000 Kg/m2 |
| 6 | 2500 x 1250 mm | 47.010 | 40.000 | 2500 x 1250 | 314.000 Kg/m2 |
| 6 | 3000 x 1500 mm | 47.010 | 40.000 | 3000 x 1500 | 314.000 Kg/m2 |
| 5 | 4000 x 1830 mm | 39.025 | 35.000 | 3000 x 1500 | 274.075 Kg/m2 |
| 6 | 3660 x 1830 mm | 47.010 | 40.000 | 4000 x 2000 | 314.000 Kg/m2 |
| 6 | 4000 x 1750 mm | 47.010 | 40.000 | 5000 x 2500 | 314.000 Kg/m2 |
| 6 | 3000 x 1525 mm | 47.010 | 40.000 | 4000 x 1750 | 314.000 Kg/m2 |
| 6 | 4000 x 1830 mm | 47.010 | 40.000 | 6000 x 2000 | 314.000 Kg/m2 |
| 6 | 6000 x 1500 mm | 47.010 | 45.000 | 2000 x 1000 | 353.025 Kg/m2 |
| 6 | 6000 x 1830 mm | 47.010 | 45.000 | 2500 x 1250 | 353.025 Kg/m2 |
| 6 | 4000 x 2000 mm | 47.010 | 40.000 | 7500 x 2500 | 314.000 Kg/m2 |
| 6 | 6000 x 2000 mm | 47.010 | 45.000 | 2500 x 1500 | 353.025 Kg/m2 |
| 6 | 8000 x 2000 | 47.010 | 45.000 | 4000 x 2000 | 353.025 |
| 6 | 8000 x 2500 | 47.010 | 45.000 | 5000 x 2500 | 353.025 |
| 6 | 6000 x 2500 mm | 47.010 | 45.000 | 3000 x 1500 | 353.025 Kg/m2 |
| 8 | 2000 x 1000 | 62.080 | 50.000 | 2000 x 1000 | 392.050 |
| 8 | 3000 x 1500 | 62.080 | 50.000 | 3000 x 1500 | 392.050 |
| 8 | 3660 x 1830 | 62.080 | 50.000 | 4000 x 2000 | 392.050 |
| 8 | 4000 x 2000 | 62.080 | 50.000 | 5000 x 2500 | 392.050 |
| 8 | 2500 x 1250 | 62.080 | 50.000 | 2500 x 1250 | 392.050 |
| 8 | 5000 x 2500 | 62.080 | 50.000 | 6000 x 2000 | 392.050 |
| 8 | 6000 x 2000 | 62.080 | 60.000 | 2000 x 1000 | 471.000 |
| 8 | 6000 x 1500 | 62.080 | 50.000 | 8000 x 2500 | 392.050 |
| 8 | 8000 x 2000 | 62.080 | 60.000 | 2500 x 1250 | 471.000 |
| 10 | 2500 x 1250 | 78.050 | 60.000 | 4000 x 2000 | 471.000 |
| 10 | 3000 x 1500 | 78.050 | 60.000 | 5000 x 2500 | 471.000 |
| 10 | 2000 x 1000 | 78.050 | 60.000 | 3000 x 1500 | 471.000 |
| 10 | 4000 x 1750 | 78.050 | 65.000 | 2000 x 1000 | 510.025 |
| 10 | 6000 x 1500 | 78.050 | 65.000 | 3000 x 1500 | 510.025 |
| 10 | 6000 x 2000 | 78.050 | 65.000 | 4000 x 2000 | 510.025 |
| 10 | 6000 x 2500 | 78.050 | 65.000 | 5000 x 2500 | 510.025 |
| 10 | 5000 x 2500 | 78.050 | 65.000 | 2500 x 1250 | 510.025 |
| 10 | 10000 x 2000 | 78.050 | 70.000 | 2000 x 1000 | 549.05 |
| 10 | 10000 x 2500 | 78.050 | 70.000 | 2500 x 1250 | 549.05 |
| 12 | 4000 x 2000 | 94.020 | 70.000 | 4000 x 2000 | 549.05 |
| 12 | 6000 x 2000 | 94.020 | 70.000 | 5000 x 2500 | 549.05 |
| 12 | 6000 x 2500 | 94.020 | 75.000 | 2000 x 1000 | 588.075 |
| 12 | 2000 x 1000 | 94.020 | 70.000 | 3000 x 1500 | 549.05 |
| 12.05 | 2000 x 1000 | 98.013 | 75.000 | 2500 x 1250 | 588.075 |
| 12.05 | 2500 x 1250 | 98.013 | 75.000 | 3000 x 1500 | 588.075 |
| 12.05 | 3050 x 1525 | 98.013 | 75.000 | 5000 x 2500 | 588.075 |
| 12.05 | 4000 x 1750 | 98.013 | 80.000 | 2000 x 1000 | 628.000 |
| 12.05 | 4000 x 2000 | 98.013 | 80.000 | 2500 x 1250 | 628.000 |
| 12.05 | 5000 x 2500 | 98.013 | 80.000 | 3000 x 1500 | 628.000 |
| 12.05 | 6000 x 1500 | 98.013 | 80.000 | 4000 x 2000 | 628.000 |
| 12.05 | 6000 x 2000 | 98.013 | 90.000 | 2000 x 1000 | 706.05 |
| 12.05 | 3000 x 1500 | 98.013 | 75.000 | 4000 x 2000 | 588.075 |
| 12.05 | 6000 x 2500 | 98.013 | 90.000 | 2500 x 1250 | 706.05 |
| 15 | 2500 x 1250 | 117.075 | 90.000 | 4000 x 2000 | 706.05 |
| 15 | 3000 x 1500 | 117.075 | 90.000 | 5000 x 2000 | 706.05 |
| 15 | 2000 x 1000 | 117.075 | 90.000 | 3000 x 1500 | 706.05 |
| 20 | 2500 x 1250 | 157.000 | 110.000 | 2000 x 1000 | 863.050 |
| 15 | 4000 x 1750 | 117.075 | 100.000 | 2000 x 1000 | 785.000 |
| 15 | 4000 x 2500 | 117.075 | 100.000 | 3000 x 1500 | 785.000 |
| 15 | 5000 x 2500 | 117.075 | 100.000 | 4000 x 2000 | 785.000 |
| 15 | 4000 x 2000 | 117.075 | 100.000 | 2500 x 1250 | 785.000 |
| 15 | 6000 x 2500 | 117.075 | 100.000 | 5000 x 2500 | 785.000 |
| 20 | 3000 x 1500 | 157.000 | 110.000 | 2500 x 1250 | 863.050 |
As for Uses and Applications, IS 2062 E250C Plates find their way into numerous sectors like construction, infrastructure, and general engineering. They’re perfect for building bridges, industrial sheds, storage tanks, railway wagons, and components for heavy machinery. Their excellent weldability and formability make them ideal for creating structural frameworks, pressure vessels, and marine structures. Plus, they’re commonly used in automotive chassis, equipment bases, and other load-bearing applications that demand high strength and toughness. With their outstanding mechanical properties, IS 2062 E250C Plates are a go-to choice for reliable and efficient structural engineering solutions.
