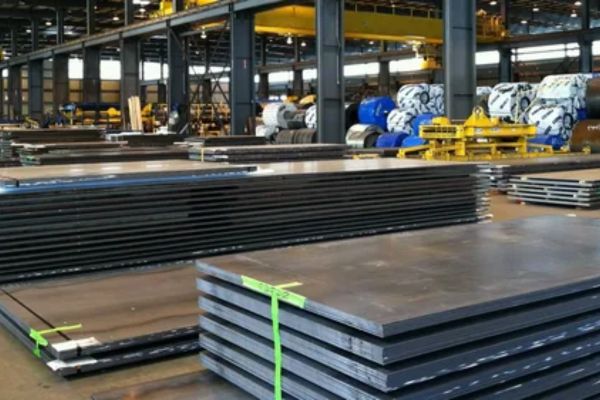

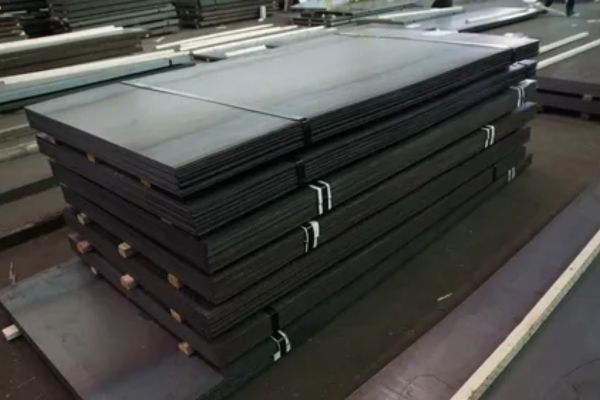

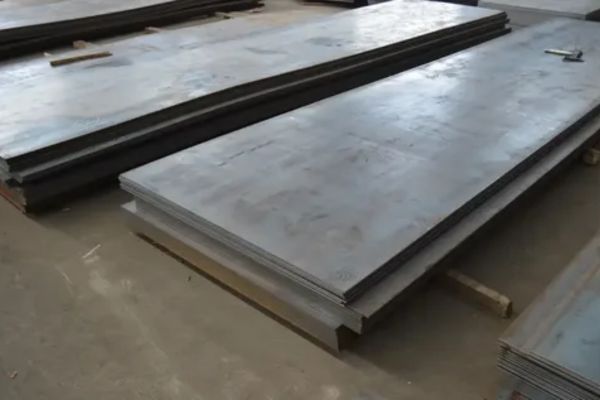

Liam Steel, a reputable manufacturer and supplier located in Manila, Philippines, has built a solid reputation for delivering top-notch HB 400 Sheets and Plates that excel in wear resistance and strength. Crafted with cutting-edge technology and premium raw materials, these plates are engineered to endure heavy impacts and abrasive conditions. Liam Steel is committed to ensuring that each product adheres to international quality standards, providing durability, precision, and a long lifespan. The company caters to a variety of industries, including mining, construction, material handling, and earthmoving, offering dependable and cost-effective steel solutions tailored to meet specific industrial needs.
The HB 400 Sheets and Plates boast a meticulously balanced mix of carbon, manganese, silicon, chromium, and nickel, resulting in remarkable hardness and strength. With a nominal hardness of 400 HBW, these plates provide outstanding resistance to abrasion, wear, and impact. They strike a great balance between toughness and weldability, making them perfect for high-stress applications. Thanks to their high yield and tensile strength, HB 400 plates promise long-lasting performance, even in the face of demanding operating conditions and extreme mechanical stress.
Width:Â 500-3000mm
Thickness :Â 3-130mm
Length:Â 1000-12000mm
Heat Treatment:Â N, Q+T
Surface Paint:Â EP, PE, HDP, SMP, PVDF
| Hardened 400 Chemical Composition (%) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Mechanical properties of Hardened 400 | |||||
|---|---|---|---|---|---|
| Grade | Mechanical Property | Charpy V Impact Test | |||
| HARDOX 400 | Yield | Tensile | Elongation | Degree | longitudinal |
| Min Mpa | Mpa | Min % | -40 | J | |
| 1000 | 1250 | 10 | 45 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Thickness (mm) | Product | Hardness Range (HBW) |
|---|---|---|
| 2.5 – 6.4 | Cut Lengths | 360 – 420 |
| 5 – 15 | Heavy Plates | 360 – 420 |
| 15- 30 | Heavy Plates | 360 – 450 |
| 30 – 60 | Heavy Plates | 360 – 480 |
HB 400 Sheets and Plates find their place in various industries that demand high wear resistance and strength. They’re perfect for crafting mining machinery, dump truck bodies, hoppers, crushers, and conveyors. In construction, they serve heavy-duty equipment like bulldozers, excavators, and loaders. These plates are also ideal for material handling systems, agricultural tools, and industrial liners where durability and impact resistance are crucial. Their ability to thrive under abrasive and high-load conditions makes them a fantastic choice for extending the lifespan of industrial and structural components.
