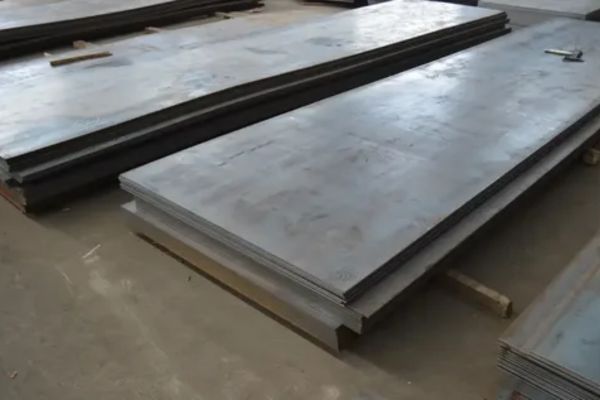

Liam Steel, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality **SAE 1045 Steel Sheets and Plates**. These products are specifically designed for medium-carbon steel applications that demand strength, hardness, and wear resistance. Renowned for their excellent machinability and consistent mechanical properties, these plates are perfect for a variety of industrial and engineering uses. Liam Steel is committed to strict quality control, precision manufacturing, and adherence to international standards, ensuring that their steel products are both reliable and durable. Their SAE 1045 Sheets and Plates find extensive application in the automotive, construction, and machinery sectors, where performance, toughness, and consistent quality are paramount.
The **SAE 1045 Steel Sheets and Plates** primarily consist of 0.45% carbon and 0.60–0.90% manganese, along with trace amounts of phosphorus and sulfur. This medium-carbon makeup strikes a great balance between strength, hardness, and ductility. With a typical tensile strength ranging from 570 to 700 MPa and a yield strength of about 310 to 450 MPa, they are well-suited for applications that require wear resistance and moderate toughness. Additionally, SAE 1045 plates boast good machinability and can be heat-treated to enhance their hardness, strength, and fatigue resistance, making them versatile for various fabrication needs.
| Specification | ASTM A830 AISI 1045, SAE 1045, |
| Grade | SAE J403 Grade 1045 |
| Condition | hot rolled or normalized |
| Width | Â 200 to 2000mm |
| Thickness | Â 6 to 800mm |
| Length | 2000 to 6000mm |
| Heat treated method | By flame or induction |
| MN | FE | S | C | P |
|---|---|---|---|---|
| 0.60 – 0.90% | 98.51 – 98.98% | ≤ 0.050% | 0.420 – 0.50% | ≤ 0.040% |
| MECHANICAL PROPERTIES | Â | Â |
|---|---|---|
| Â | Metric | Imperial |
| Tensile Strength, Ultimate | 565 MPa | 81,900 PSI |
| Tensile Strength, Yield | 310 MPa | 45,000 PSI |
| Modulus of Elasticity | 200 GPa | 29,000 KSI |
| Hardness, Brinell | 163 | 163 |
| Elongation at Break (in 50 mm) | 16.0% | 16.0% |
| Bulk Modulus (Typical for Steel) | 140 GPa | 20,300 KSI |
| Poissons Ratio | 0.290 | 0.290 |
| Shear Modulus | 80 GPa | 11,600 KSI |
| Grade | EU EN | DIN,WNr | JIS | AFNOR | BS | GOST | ISO | UNS |
| 1045 | C45E (1.1191) | Ck45 | S45C | XC45 XC48H1 | 080M46 CFS8 | 45 | C45E4 | G10450 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Length x Width | Thickness |
|---|---|
| mm | mm |
| 2000 x 1000 | 0.8 |
| 2440 x 1220 | 1.0 |
| 2500 x 1250 | 0.9 |
| 2500 x 1250 | 0.8 |
| 2000 x 1000 | 1.20 |
| 2000 x 1000 | 1.0 |
| 2000 x 1000 | 0.9 |
| 1830 x 1220 | 1.0 |
| 2500 x 1250 | 1.20 |
| Thickness | Length x Width | Mass per Sq m |
|---|---|---|
| mm | mm | Kg/m2 |
| 30.00 | 2000 x 1000 | 235.50 |
| 30.00 | 4000 x 2000 | 235.50 |
| 30.00 | 2500 x 1250 | 235.50 |
| 30.00 | 5000 x 2500 | 235.50 |
| 30.00 | 3000 x 1500 | 235.50 |
| 30.00 | 5000 x 1250 | 235.50 |
| 40.00 | 2000 x 1000 | 314.00 |
| 32.00 | 2000 x 1000 | 251.20 |
| 30.00 | 10000 x 2500 | 235.50 |
| 30.00 | 6000 x 2500 | 235.50 |
| 32.00 | 2500 x 1250 | 251.20 |
| 32.00 | 3000 x 1500 | 251.20 |
| 32.00 | 5000 x 2500 | 251.20 |
| 32.00 | 4000 x 2000 | 251.20 |
| 35.00 | 3000 x 1500 | 274.75 |
| 35.00 | 4000 x 2000 | 274.75 |
| 35.00 | 2500 x 1250 | 274.75 |
| 40.00 | 2500 x 1250 | 314.00 |
| 40.00 | 3000 x 1500 | 314.00 |
| 40.00 | 4000 x 2000 | 314.00 |
You’ll find **SAE 1045 Steel Sheets and Plates** commonly used in shafts, gears, bolts, machinery components, automotive parts, and structural applications where strength and wear resistance are crucial. They are ideal for forging, machining, and fabrication processes that require durability and precise mechanical performance. Moreover, these plates are frequently utilized in construction equipment, agricultural machinery, and industrial tools. With their combination of hardness, toughness, and machinability, **SAE 1045 Sheets and Plates** deliver reliable performance for both general and high-stress engineering applications.
