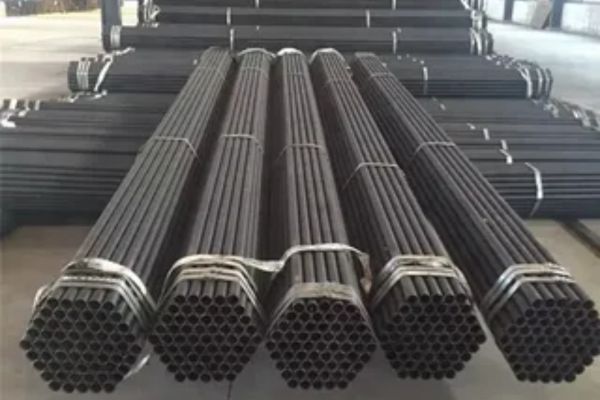

Liam Steel, a reputable manufacturer and supplier located in Manila, Philippines, specializes in high-quality Carbon Steel SA210 A1 Tubing, crafted for exceptional heat transfer and mechanical performance. These seamless tubes are produced in line with ASTM A210/A210M standards and are commonly utilized in boilers, heat exchangers, and superheaters. With their smooth internal and external surfaces, SA210 A1 tubing guarantees optimal thermal conductivity, pressure resistance, and durability. Liam Steel delivers precision-engineered tubes that boast consistent dimensions, impressive corrosion resistance, and a long service life, making them perfect for industrial applications in power generation, petrochemical, and chemical processing sectors.
Carbon Steel SA210 A1 Tubing primarily consists of carbon (≤0.30%), manganese (0.29–1.06%), phosphorus (≤0.035%), sulfur (≤0.035%), and silicon (0.10–0.35%). This specific alloy composition results in high tensile strength, ductility, and remarkable heat resistance. Typically, the tubing has a minimum tensile strength of 415 MPa and a yield strength of 205 MPa. The cold-drawn seamless construction ensures uniform wall thickness, a smooth surface finish, and mechanical stability. SA210 A1 tubing is known for its excellent weldability, impact resistance, and high-temperature performance, making it a top choice for critical boiler and heat exchanger applications.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Element | A/SA 210 Gr A1 |
| C | 0.27 max. |
| Mn | 0.93 max. |
| P | 0.035 max. |
| S | 0.035 max. |
| Si | 0.10 min. |
| Element | A/SA 210 |
| Tensile Strength KSI (MPa) | 60 (415) |
| Yield Strength KSI (MPa) | 37 (255) |
| Elongation min. % | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA210 A1 Tubing in Manila, Philippines. We offer premium steel materials and a comprehensive range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to timely delivery and exceptional customer service, we source the finest raw materials to ensure superior strength and performance in demanding industrial applications. Contact us today for all your Carbon Steel SA210 A1 Tubing requirements!
| Outside Diameter in MM | Cut Length in MM | |
|---|---|---|
| Over (+) | Under (-) | |
| All Sizes | 3⁄16 [5] | 0 [0] |
| Under 2 (50.8) | 1⁄8 [3] | 0 [0] |
| 2 (50.8) and over | 3⁄16 [5] | 0 [0] |
| Under 2 (50.8) | 1⁄8 [3] | 0 [0] |
| 2 (50.8) and over | 3⁄16 [5] | 0 [0] |
Carbon Steel SA210 A1 Tubing is extensively used in industries that demand efficient heat transfer and high-temperature performance. It’s perfect for creating boilers, superheaters, heat exchangers, and condensers in power plants, petrochemical facilities, and chemical processing units. The seamless design guarantees precise dimensions, smooth surfaces, and resistance to scaling and corrosion. Additionally, SA210 A1 tubes find applications in thermal oil heaters and industrial furnaces. Their high strength, durability, and thermal conductivity make them well-suited for challenging industrial environments, ensuring reliable performance in demanding conditions.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
