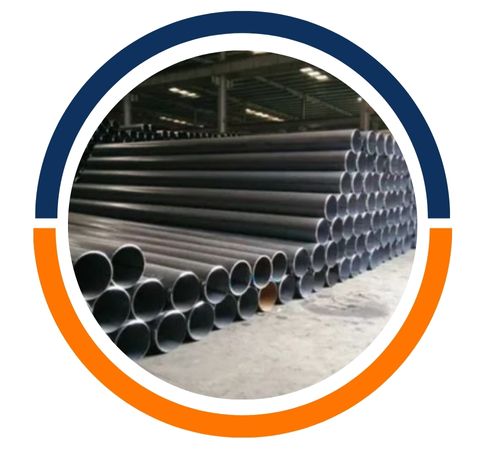

Liam Steel stands out as a reliable manufacturer and supplier of CDS Tubing in Manila, Philippines. The company focuses on crafting high-quality, durable tubing that caters to a variety of industrial, structural, and mechanical needs. Known for its precision, strength, and dependability, CDS Tubing is perfect for tough environments where consistent performance is a must. With strict quality control and adherence to international standards, Liam Steel guarantees precise dimensions, a smooth surface finish, and exceptional mechanical properties. This tubing finds its place in construction, automotive, machinery, and fabrication industries, delivering safe, efficient, and long-lasting solutions.
CDS Tubing is generally crafted from top-notch carbon steel or alloy steel, providing impressive tensile strength, hardness, and resistance to wear and corrosion. It’s produced using methods like seamless or welded tubing techniques, followed by heat treatment to ensure dimensional stability and mechanical durability. With consistent wall thickness, high pressure tolerance, and excellent impact resistance, CDS Tubing combines strength, flexibility, and reliability for optimal performance in applications involving fluid flow, structural support, or mechanical load-bearing, making it a go-to choice for industrial, automotive, and construction projects.
| Condition | Nominal Yield Strength psi | Nominal Ultimate Strength psi | Nominal Elongation in 2% | Equivalent Rockwell Hardness | Equivalent Brinell Hardness |
| GRADE 1018 c .15/.20 Mn .60/90 P .40 max S .050 max | |||||
| Hot-Rolled | 35,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 38,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 50,000 | 40 | B-57 | 97 |
| As-Drawn | 70,000 | 85,000 | 10 | B-87 | 170 |
| CD-Stress Relief Annealed | 60,000 | 80,000 | 15 | B-85 | 163 |
| GRADE 1020 C. 18/.23 Mn .30/.60 P .040 max S .050 max | |||||
| Hot-Rolled | 38,000 | 60,000 | 30 | B-68 | 116 |
| Normalized | 40,000 | 58,000 | 35 | B-66 | 114 |
| Soft-Annealed | 33,000 | 53,000 | 40 | B-62 | 105 |
| As-Drawn | 65,000 | 80,000 | 10 | B-85 | 163 |
| CD-Stress Relief Annealed | 60,000 | 75,000 | 15 | B-81 | 149 |
| GRADE 1026 C .22/.28 Mn .60/.90 P .030 max S .050 max | |||||
| Hot-Rolled | 47,000 | 70,000 | 28 | B-77 | 137 |
| Normalized | 50,000 | 67,000 | 33 | B-74 | 131 |
| Soft-Annealed | 36,000 | 60,000 | 35 | B-68 | 116 |
| As-Drawn | 72,000 | 87,000 | 10 | B-89 | 179 |
| CD-Stress Relief Annealed | 65,000 | 82,000 | 15 | B-86 | 167 |
| OUTSIDE AND INSIDE DIAMETER TOLERANCES FOR ROUND COLD-WORKED SEAMLESS TUBING PER ASTM A519 | ||||||||||
| Outside Diameter Size Range in | Thermal Treatment after Final Cold Work Producing Size | |||||||||
| Wall Thickness as Percent of OD | None, or not exceeding 1100°F. Nominal Temperature | Heated Above 1100°F. Nominal Temperature Without Accelerated Cooling | ||||||||
| OD, in | ID, in | OD, in | ID, in | |||||||
| Over | Under | Over | Under | Over | Under | Over | Under | |||
| Up to 0.499 | All | 0.004 | 0.000 | — | — | 0.005 | 0.002 | — | — | |
| 0.500-1.699 | All | 0.005 | 0.000 | 0.000 | 0.005 | 0.007 | 0.002 | 0.002 | 0.007 | |
| 1.700-2.099 | All | 0.006 | 0.000 | 0.000 | 0.006 | 0.006 | 0.005 | 0.005 | 0.006 | |
| 2.100-2.499 | All | 0.007 | 0.000 | 0.000 | 0.007 | 0.008 | 0.005 | 0.005 | 0.008 | |
| 2.500-2.899 | All | 0.008 | 0.000 | 0.000 | 0.008 | 0.009 | 0.005 | 0.005 | 0.009 | |
| 2.900-3.299 | All | 0.009 | 0.000 | 0.000 | 0.009 | 0.011 | 0.005 | 0.005 | 0.011 | |
| 3.300-3.699 | All | 0.010 | 0.000 | 0.000 | 0.010 | 0.013 | 0.005 | 0.005 | 0.013 | |
| 3.700-4.099 | All | 0.011 | 0.000 | 0.000 | 0.011 | 0.013 | 0.007 | 0.010 | 0.010 | |
| 4.100-4.499 | All | 0.012 | 0.000 | 0.000 | 0.012 | 0.014 | 0.007 | 0.011 | 0.011 | |
| 4.500-4.899 | All | 0.013 | 0.000 | 0.000 | 0.013 | 0.016 | 0.007 | 0.012 | 0.012 | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Wall Thickness | ||||||||||||||||||||
| DIA | SCH.5S | SCH.5 | SCH 10S | SCH.10 | SCH.20S | SCH.30 | SCH.40S | SCH.40 | SCH 60 | |||||||||||
| (A) | (B) | Meter MM | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr | Wall Thk | Weight Kg/Mtr |
| 6 | 1/8 | 10.3 | 1 | 0.23 | 1.2 | 0.27 | 1.5 | 0.33 | 1.73 | 0.37 | ||||||||||
| 8 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2 | 0.58 | 2.24 | 0.64 | ||||||||||
| 10 | 3/8 | 17.2 | 1.2 | 0.47 | 1.65 | 0.63 | 2 | 0.74 | 2.31 | 0.87 | ||||||||||
| 15 | 1/2 | 21.3 | 1.65 | 0.01 | 1.65 | 0.81 | 2.11 | 1.02 | 2.11 | 1.02 | 2.5 | 1.15 | 2.77 | 1.29 | ||||||
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 1.65 | 1.03 | 2.11 | 1.3 | 2.11 | 1.3 | 2.5 | 1.49 | 2.87 | 1.71 | ||||||
| 25 | 1 | 33.4 | 1.65 | 1.31 | 1.65 | 1.31 | 2.77 | 2.13 | 2.77 | 2.13 | 3 | 2.24 | 3.38 | 2.54 | ||||||
| 32 | 11/4 | 24.2 | 1.65 | 1.67 | 1.65 | 1.67 | 2.77 | 2.73 | 2.77 | 2.73 | 3 | 2.9 | 3.56 | 3.44 | ||||||
| 40 | 11/2 | 48.3 | 1.65 | 1.93 | 1.65 | 1.93 | 2.77 | 3.16 | 2.77 | 3.16 | 3 | 3.35 | 3.68 | 4.11 | ||||||
| 50 | 2 | 60.3 | 1.65 | 1.93 | 1.65 | 2.42 | 2.77 | 3.99 | 2.77 | 3.99 | 3.5 | 4.9 | 3.91 | 5.52 | ||||||
| 65 | 21/2 | 73 | 2.11 | 3.75 | 2.11 | 3.75 | 3.05 | 5.34 | 3.05 | 5.34 | 3.5 | 6 | 5.16 | 8.77 | ||||||
| 80 | 3 | 88.9 | 2.11 | 4.59 | 2.11 | 4.59 | 3.05 | 6.56 | 3.05 | 6.56 | 4 | 8.37 | 5.49 | 11.47 | ||||||
| 90 | 31/2 | 101.6 | 2.11 | 5.25 | 2.11 | 5.25 | 3.05 | 7.53 | 3.05 | 7.53 | 4 | 9.62 | 5.74 | 13.78 | ||||||
| 100 | 4 | 114.3 | 2.11 | 5.93 | 2.11 | 5.93 | 3.05 | 8.5 | 3.05 | 8.5 | 4.5 | 12.18 | 6.02 | 6.32 | ||||||
| 125 | 5 | 141.3 | 2.77 | 9.61 | 2.77 | 9.61 | 3.4 | 11.74 | 3.43 | 11.74 | 5 | 16.8 | 6.55 | 2210 | ||||||
| 150 | 6 | 168.3 | 2.77 | 11.47 | 2.77 | 11.47 | 3.4 | 14.04 | 3.43 | 14.04 | 5.5 | 22.08 | 7.11 | 28.69 | ||||||
| 200 | 8 | 219.1 | 2.77 | 15 | 2.77 | 15 | 3.76 | 20.77 | 3.76 | 20.27 | 6.35 | 33.82 | 7.04 | 37.38 | 8.18 | 43.2 | 10.81 | 53.9 | ||
| 250 | 10 | 273.1 | 3.4 | 22.95 | 3.4 | 22.95 | 4.19 | 28.2 | 4.19 | 28.2 | 6.35 | 42.41 | 7.8 | 51.81 | 9.27 | 61.22 | 12.2 | 82.8 | ||
| 300 | 12 | 323.9 | 3.96 | 31.72 | 4.19 | 33.6 | 4.57 | 36.54 | 4.57 | 36.54 | 6.35 | 50.48 | 8.38 | 66.2 | 9.53 | 75.01 | 10.31 | 80.94 | 14.27 | 110.62 |
| 350 | 14 | 355.6 | 3.96 | 34.86 | 4.78 | 41.99 | 6.35 | 55.53 | 7.92 | 68.95 | 9.53 | 82.58 | 9.53 | 82.58 | 11.13 | 96 | 15.06 | 128.42 | ||
| 400 | 16 | 406.4 | 4.19 | 42.2 | 4.78 | 48.07 | 6.35 | 63.61 | 7.92 | 79.03 | 9.53 | 94.7 | 9.53 | 94.7 | 12.7 | 125.2 | 16.66 | 162.59 | ||
| 450 | 18 | 457.2 | 4.19 | 47.46 | 4.78 | 54.15 | 6.35 | 71.69 | 7.92 | 89.1 | 11.13 | 124.32 | 9.53 | 106.83 | 14.27 | 158.27 | 19.05 | 209 | ||
| 500 | 2C | 508 | 4.78 | 60.23 | 5.54 | 69.7 | 6.35 | 79.76 | 9.53 | 118.93 | 12.7 | 157.51 | 9.53 | 118.9 | 15.06 | 185.89 | 2062 | 251.65 | ||
| 550 | 22 | 558.8 | 4.78 | 65.95 | 5.54 | 76.75 | 6.35 | 87.84 | 9.53 | 131.07 | 12.7 | 173.66 | 9.53 | 131.07 | 15.88 | 216.04 | 22.23 | 298.55 | ||
| 600 | 24 | 609.6 | 5.54 | 83.8 | 6.35 | 95.92 | 6.35 | 95.92 | 9.53 | 143.2 | 14.27 | 212.72 | 9.53 | 143.2 | 17.45 | 258.74 | 24.59 | 360.21 | ||
| 650 | 26 | 660.4 | 7.92 | 129.4 | 12.7 | 205.97 | 9.53 | 155.32 | ||||||||||||
| 700 | 28 | 711.2 | 7.92 | 139.47 | 12.7 | 222.13 | 15.88 | 276.48 | 9.53 | 167.44 | ||||||||||
| 750 | 3C | 762 | 6.35 | 120.15 | 7.92 | 149.55 | 7.92 | 149.55 | 12.7 | 238.28 | 15.88 | 296.68 | 9.53 | 179.56 | ||||||
| 800 | 32 | 812.8 | 7.92 | 159.62 | 12.7 | 254.44 | 15.88 | 316.88 | 9.53 | 191.69 | 17.48 | 348.11 | ||||||||
| 850 | 34 | 863.6 | 7.92 | 169.64 | 12.7 | 270.5 | 15.88 | 336.96 | 9.53 | 203.74 | 17.48 | 370.22 | ||||||||
| 900 | 36 | 914.4 | 7.92 | 179.77 | 12.7 | 286.75 | 15.88 | 357.28 | 9.53 | 215.93 | 19.05 | 427.09 | ||||||||
In various industries that demand strong, durable, and reliable tubing solutions, CDS Tubing is a popular choice. It’s perfect for construction projects, automotive systems, industrial machinery, power plants, and oil and gas installations. This tubing is frequently utilized for pipelines, structural supports, hydraulic systems, and mechanical assemblies where strength and precision are paramount. Engineers favor CDS Tubing for its consistent quality, corrosion resistance, and mechanical performance, ensuring safe and long-lasting installations. Its versatility makes it an essential component across multiple sectors.
Liam Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Manila, Philippines.
